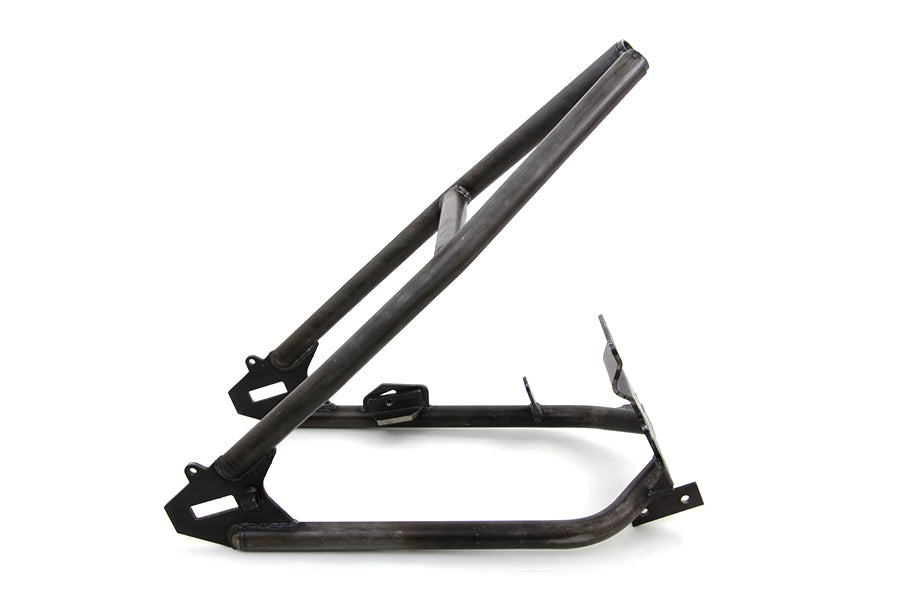

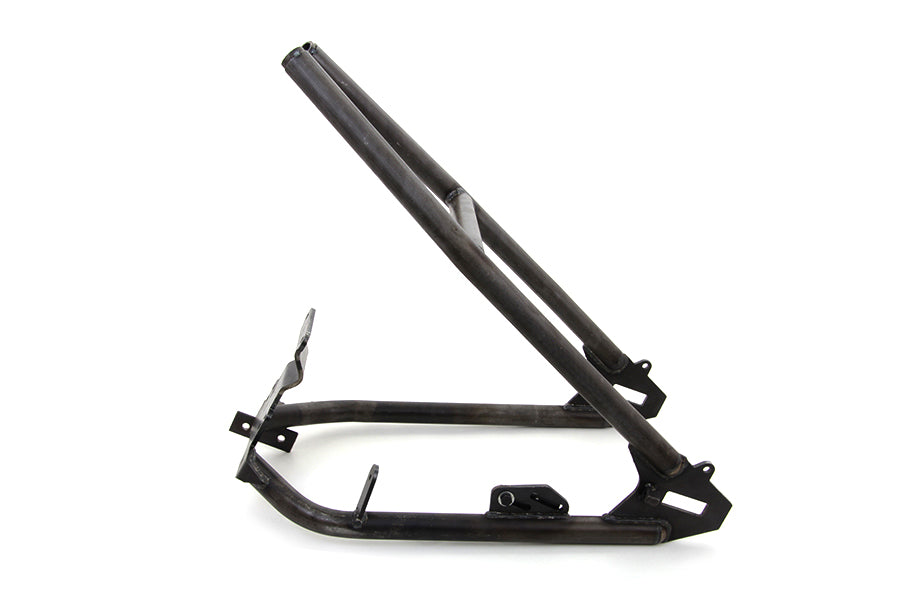

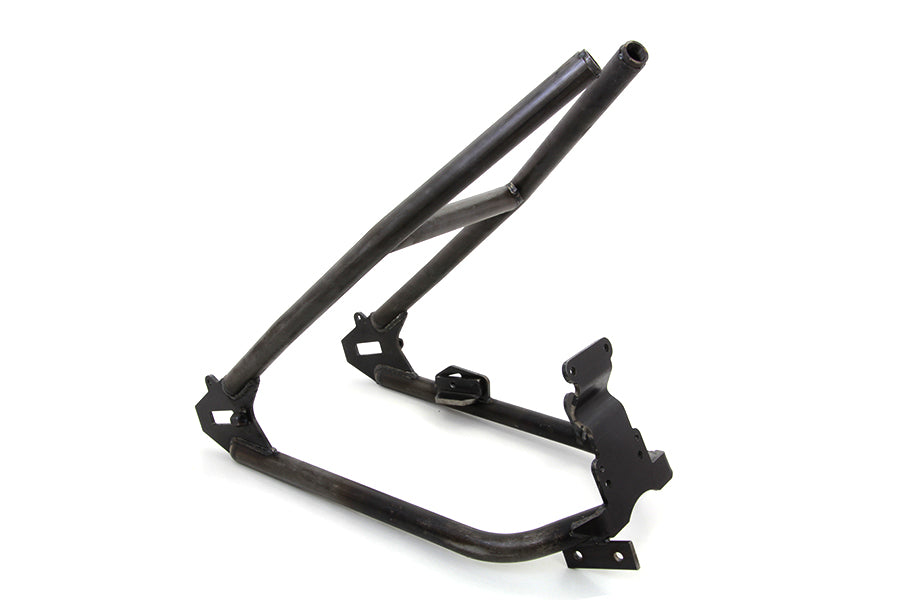

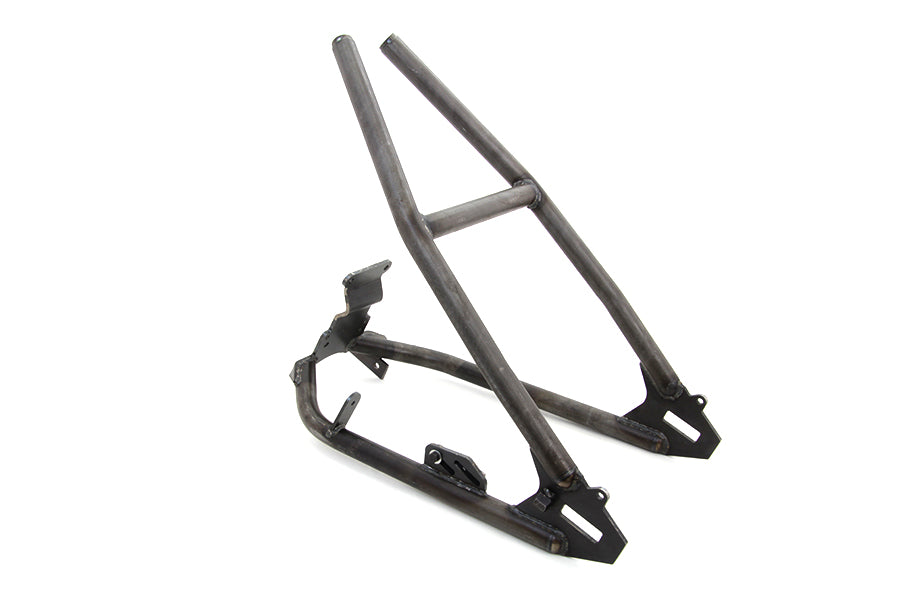

Weld-On XL Frame Hardtail

Weld on hardtail with bracket is for stock frames with disc brake. Constructed of 1-1/4 inch tubing which compliments the original tubing of the stock XL frames. The largest size tire this will take is 140.

This hardtail accepts a 14-1/2 inch long axle with a 3/4 inch outer diameter and stock rear wheel. The axle plate is welded onto the frame. DIY hardtialing can be accomplished by qualified welder as rear motor mount plate can be bolted to engine assebmly by the (4) mount bolts. Battery box mount and lower fender brace must be fabricated and installed by welding. Welding should be performed by a skilled welding technician. Custom application for 1982-2003 XL. Order rear axle adjusters separately. Suggested to use with top mount oil tank. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 51-0984
• Category: Chassis
• Product Group: Hardtail
• Product Type: Hardtails
• Country of Origin: TAIWAN

Fitment

• 1982-2003 XL

Measurements

• Top: 25-1/2 inches
• Bottom: 19-1/2 inches
• Outer Width: 11-5/8 inches
• Inner Width: 11-1/4 inches
• Tubing O.D.: 1-1/4 inches

Please verify fitment before ordering.
