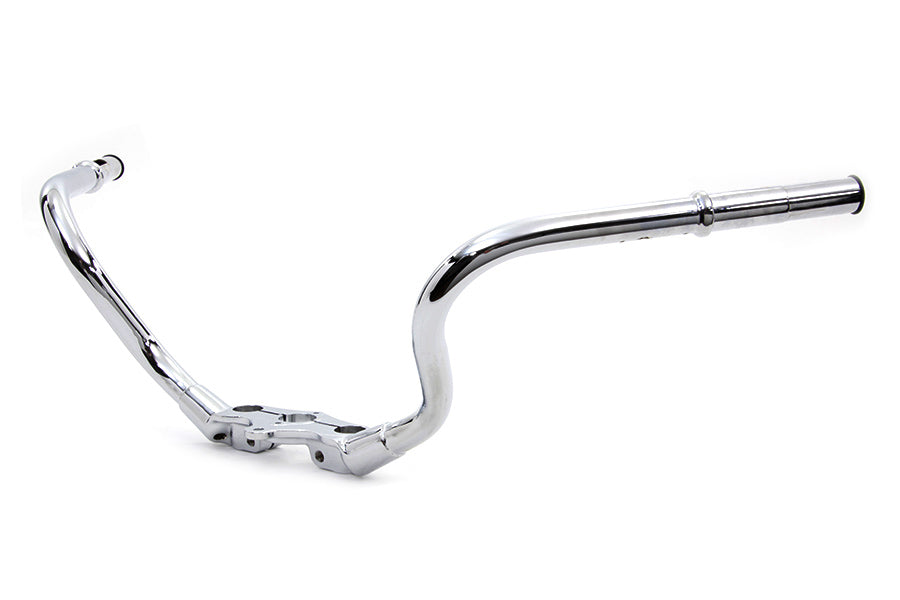

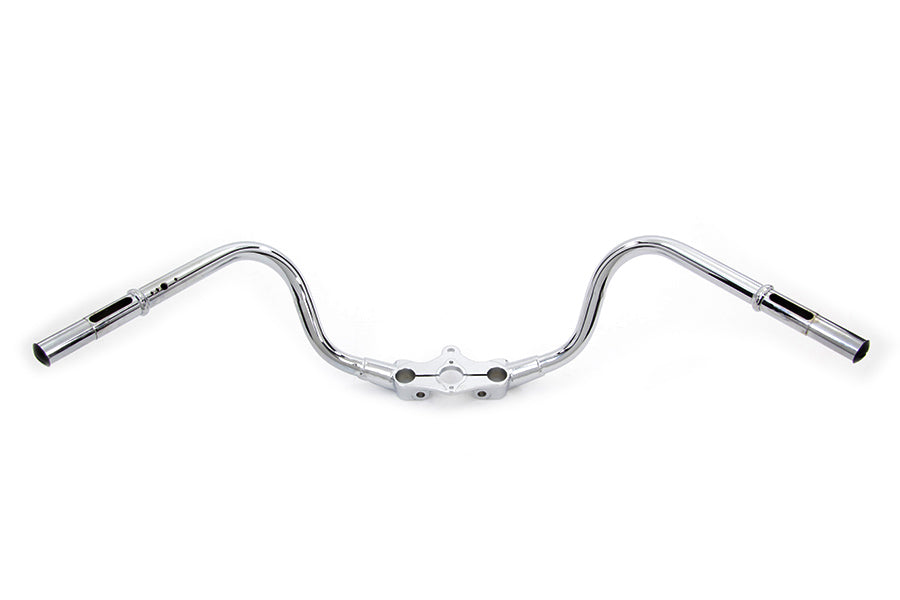

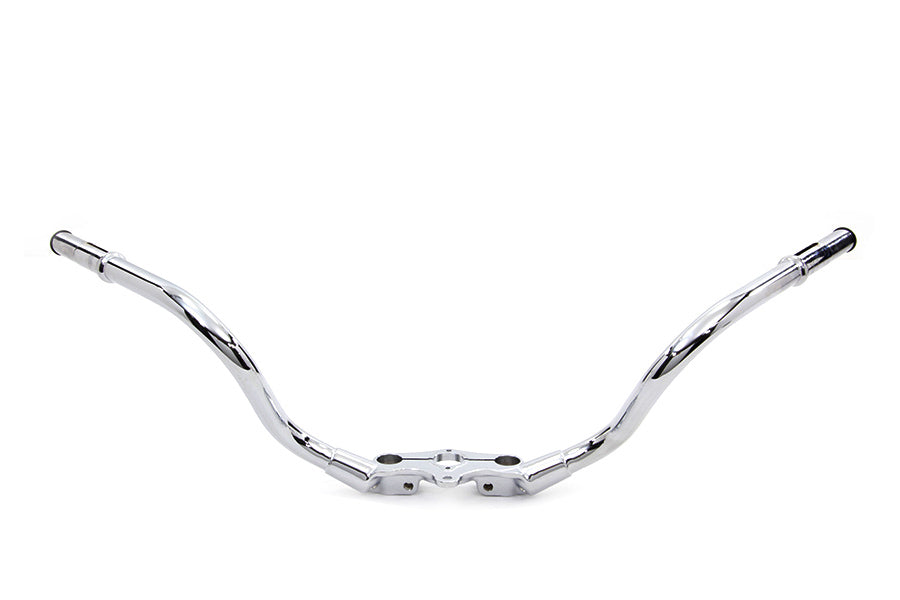

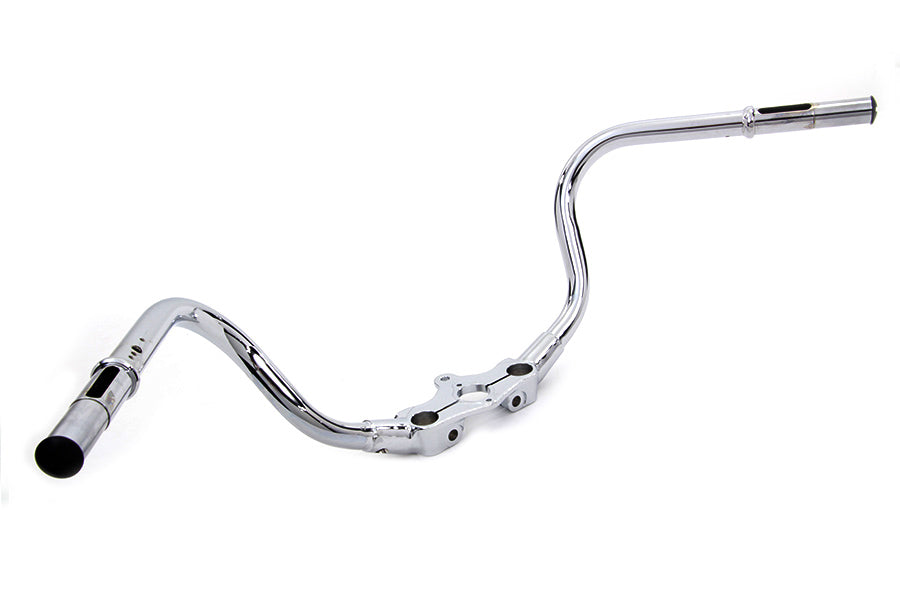

Stelling & Helling Speedster Handlebar Chrome

Stelling & Helling 8 inch speedster handlebar is for inline spring forks and features a chrome finish.

Jack Tracey asked Stelling & Helling to develop handlebars that were 4 inch taller than the original inchcomfortable inch Speedster. Bars feature a chrome finish. Horn and dimmer switch mount holes are on the left side. The distance between the holes center to center measures 4-3/4 inch. Order internals and pinch bolts separately. Order short spirals separately requires two per bar. Grips must be cut to length for this installation. Parkerized end plugs included. The center to center of the outer holes where the fork goes through the handleber measures 4-3/4 inch. NOTE: Bars have shortened grip area to accept the short Hellings type spirals as used on the Stellings bars of the late 1940's. Features brazed construction as original! *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 49-0726
• Category: Handlebar Control
• Product Group: Handlebar
• Product Type: Pre 1982 1 inch
• Country of Origin: TAIWAN

Fitment

• 1936-1957 G
• 1936-1952 W
• 1936-1948 EL
• 1941-1948 FL

Measurements

• Rise to Grip Tip: 3 inches
• Rise to Center: 4 inches
• Pull Back: 6 inches
• Width Tip to Tip: 33-5/8 inches
• Bar Diameter: 1 inches
• Center Width: 12-3/4 inches

Please verify fitment before ordering.
