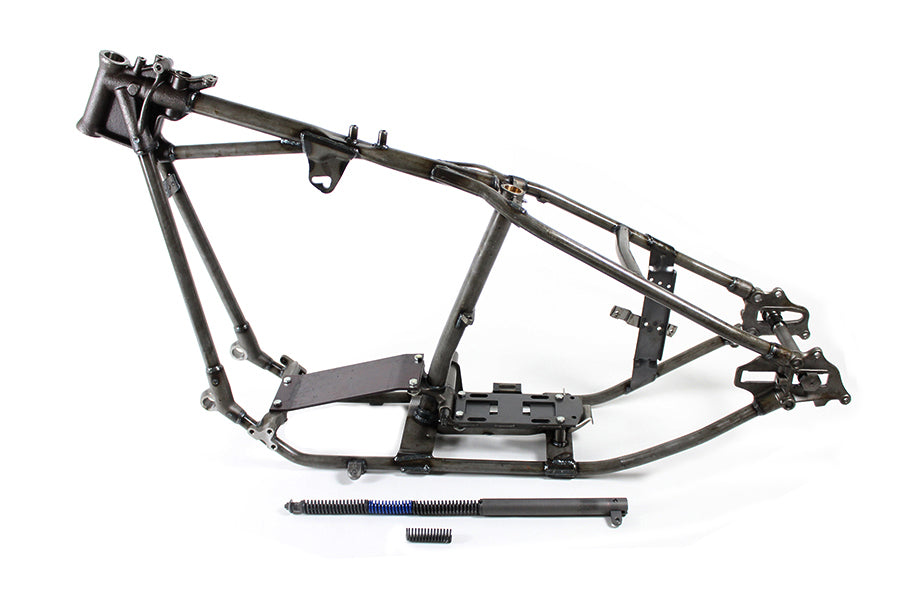

Replica Retro Straight Leg Rigid 30° Rake Frame

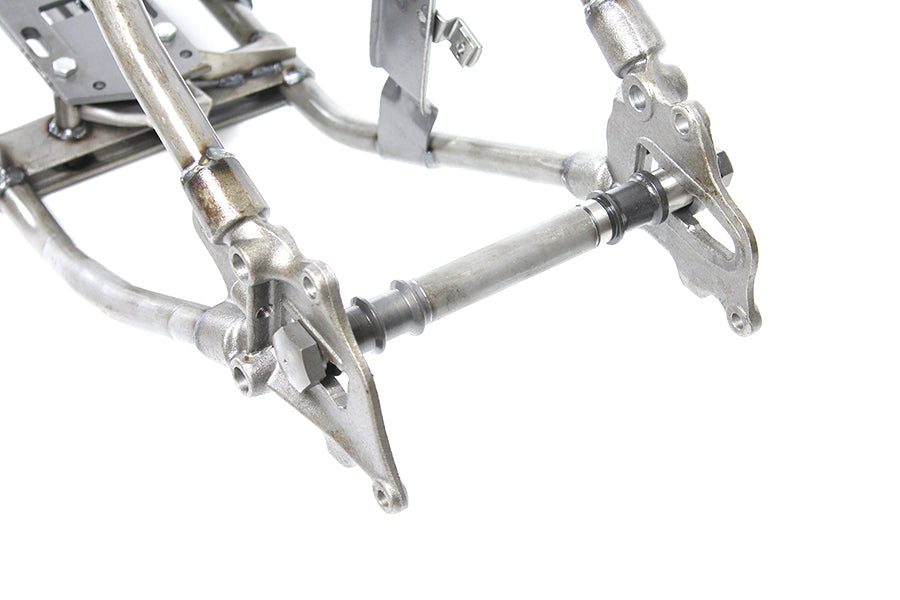

Replica retro rigid straight leg frame features original styling and is updated to accept flat side tanks. Original type forged parts include: neck side front motor mount rear motor mount car mounts and rear axle area.

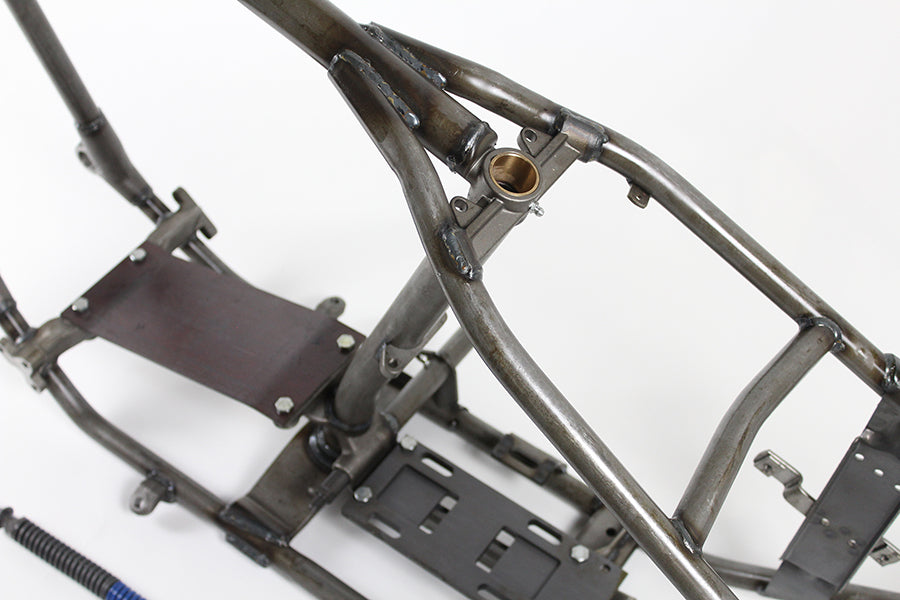

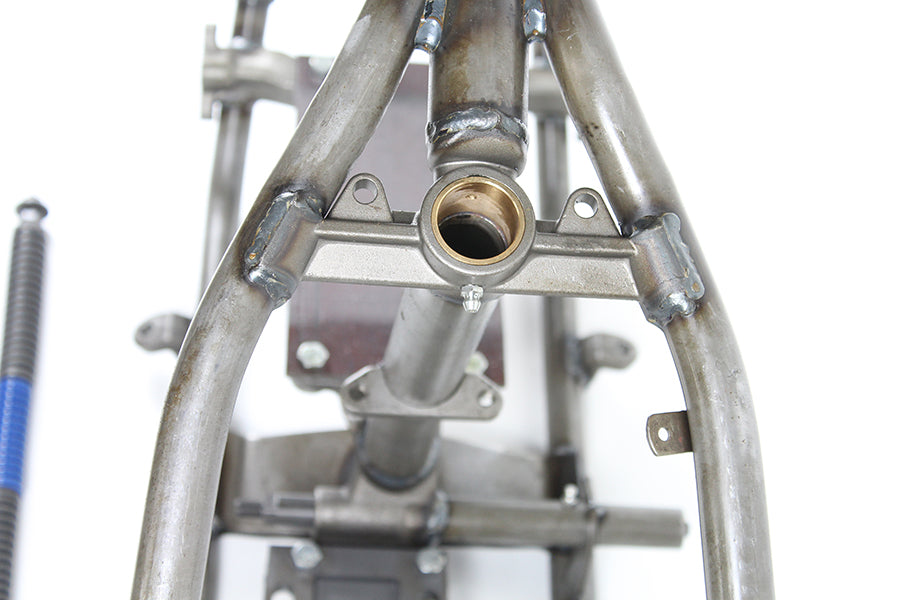

Includes seat post transmission mount plate for 4-speed transmission and rear axle. Accepts Panhead Shovelhead Evolution and Twin Cam engines but requires a tin inner primary. Accepts 1986-1999 FXST gas tanks and chain final drive. Frame has a +2 inch raised neck and 9-1/8 inch between the axle plates. Supplied with the rigid frame is the brake cross shaft for mechanical brakes and stock rear axle plate for use of the star hub wheel and mechanical brakes. The frame is taller in the engine compartment to house the Evolution and Twin Cam motors. Rigid mount 5 and 6 speed transmission with the aluminum inner and outer primarys check height of transmission plate for correct primary alignment. Retro rigid frame is shown with a TC-88 motor installed with steel rear motor mount available separately. Use with Softail type transmissions. Frame as listed will accept mechanical brakes for the old style look. Accepts a 140mm rear tire.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 51-0096
• Category: Chassis
• Product Group: Frame
• Product Type: Rigid
• Country of Origin: TAIWAN

Fitment

• 0 Custom - application
• 0 Custom - application

Please verify fitment before ordering.
