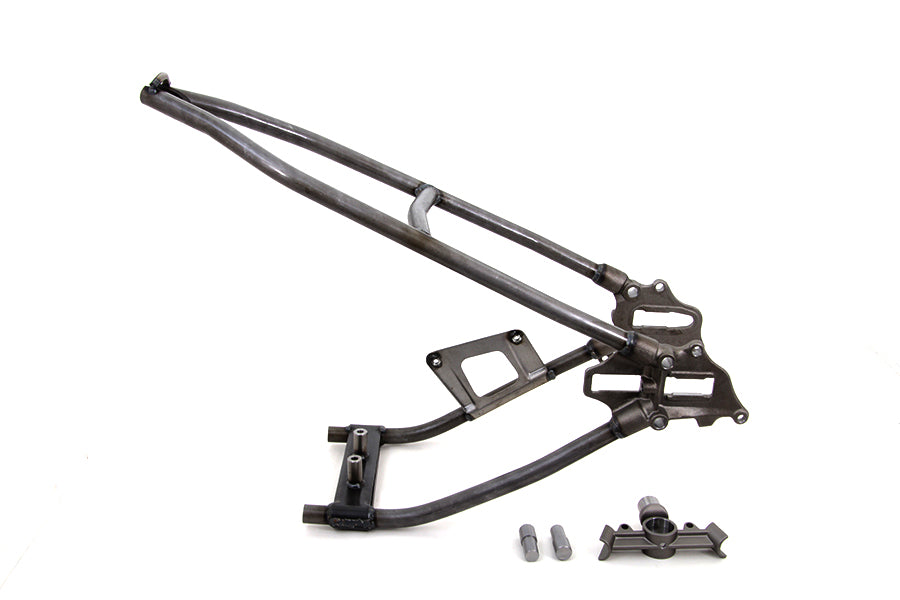

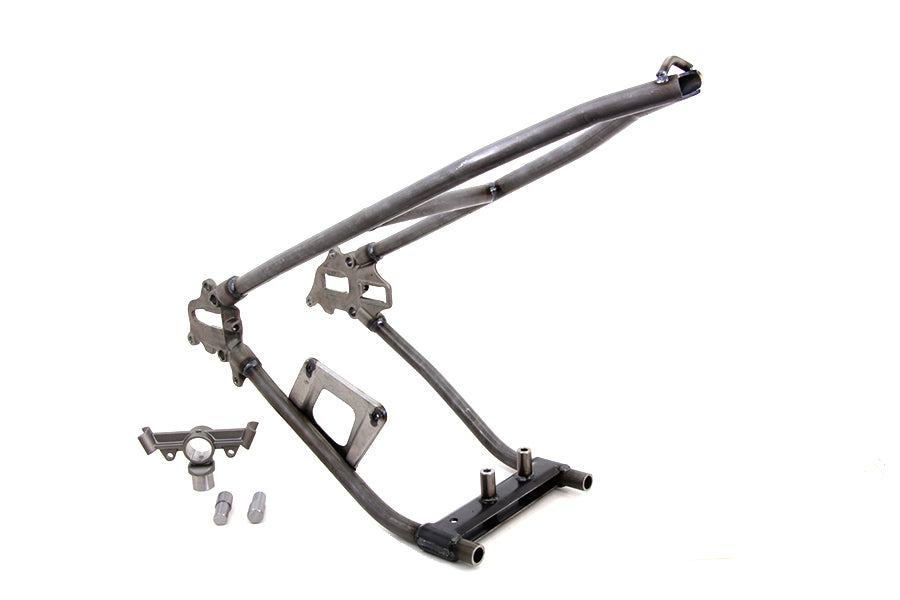

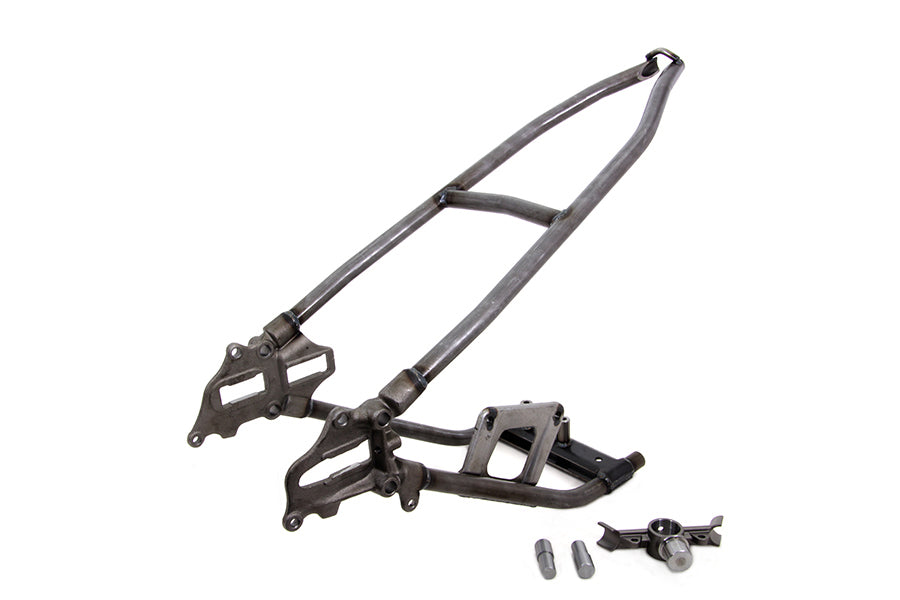

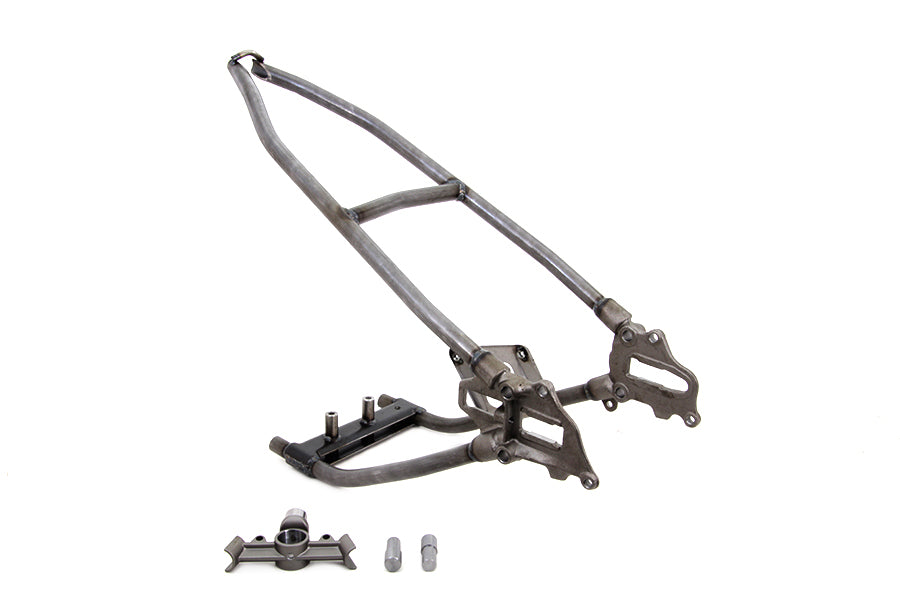

Replica rear hardtail frame section is duplicated from an original rigid frame. Weld-on type and does not have seat post bushing.
The rear transmission mounts are 1-1/2 inch tall. This hardtail includes rear transmission mount tool box bracket fender cross brace seat post top yoke and 2 dowel pins to connect lower frame tubes. Installer must weld lower tube inserts and top seat post yoke assembly in place which requires alignment and fitting of the components. Top seat post forging is included but not welded in place fabricator or installer must add tubing and seat post bushing. *NOTE: The seat post bushing must be ordered separately. *NOTE: Includes seat post cast yoke for a detailed installation. *NOTE: Transmission height shimming may be required. The axle slots are 7/8 inch on both sides. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
Product Details
- Manufacturer: V-Twin
- V-Twin Part Number: 51-0457
- Category: Chassis
- Product Group: Hardtail
- Product Type: Hardtails
- Country of Origin: TAIWAN
Fitment
- 1958-1984 FL
- 1958-1984 FL
- 1971-1984 FX
- 1971-1984 FX
Measurements
- Tubing O.D.: 1 inches
- Wall Thickness: .17 inches
Please verify fitment before ordering.
