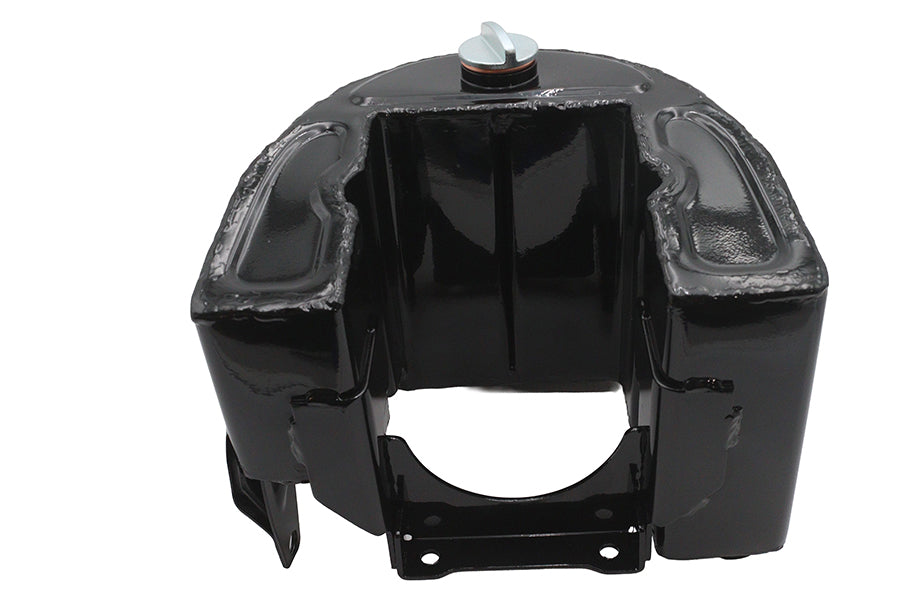

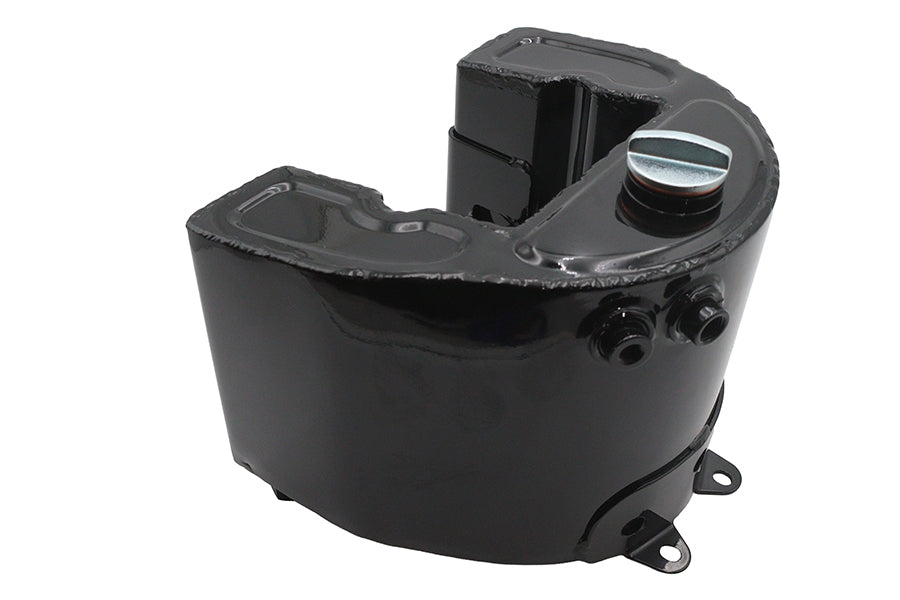

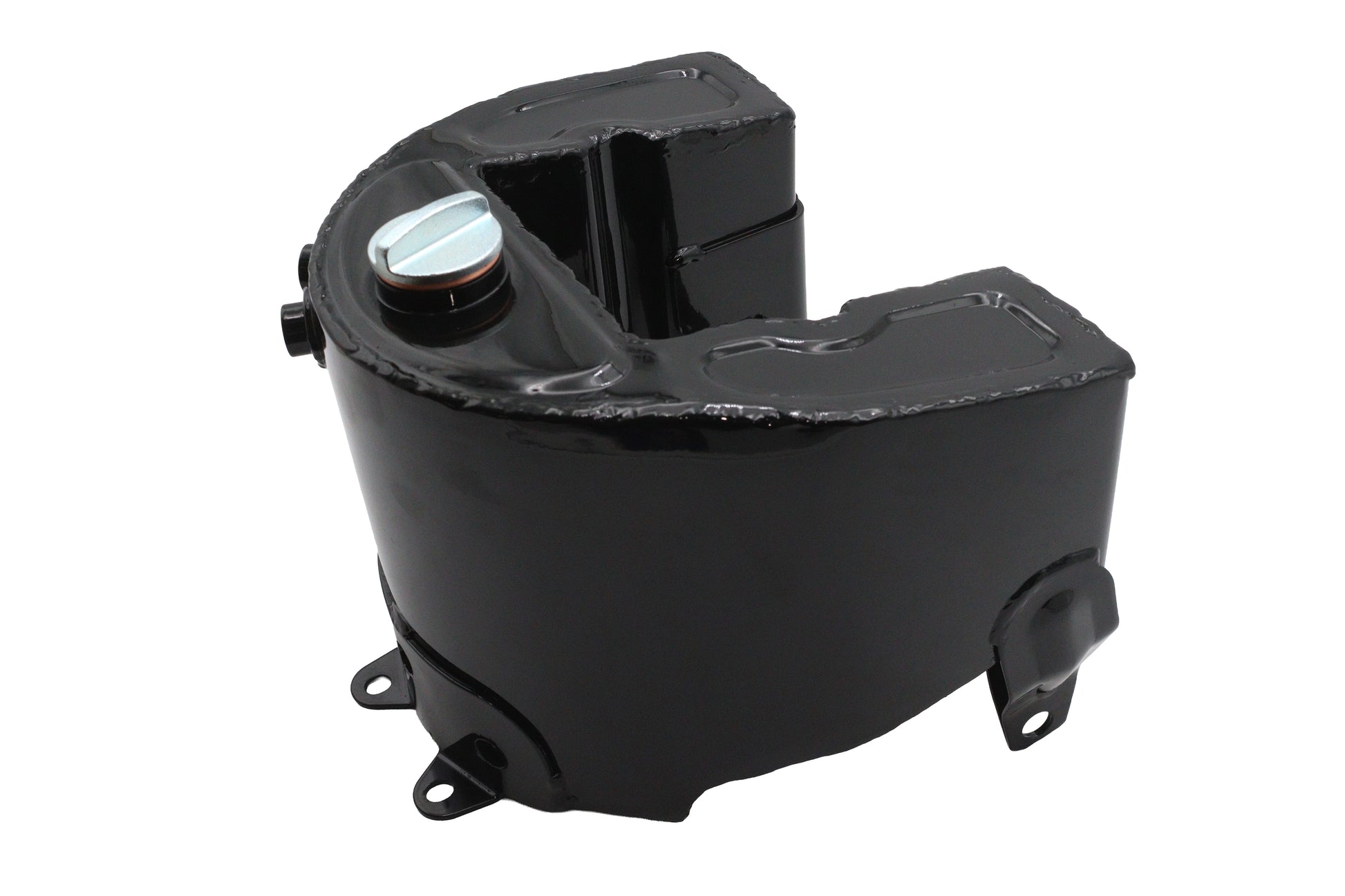

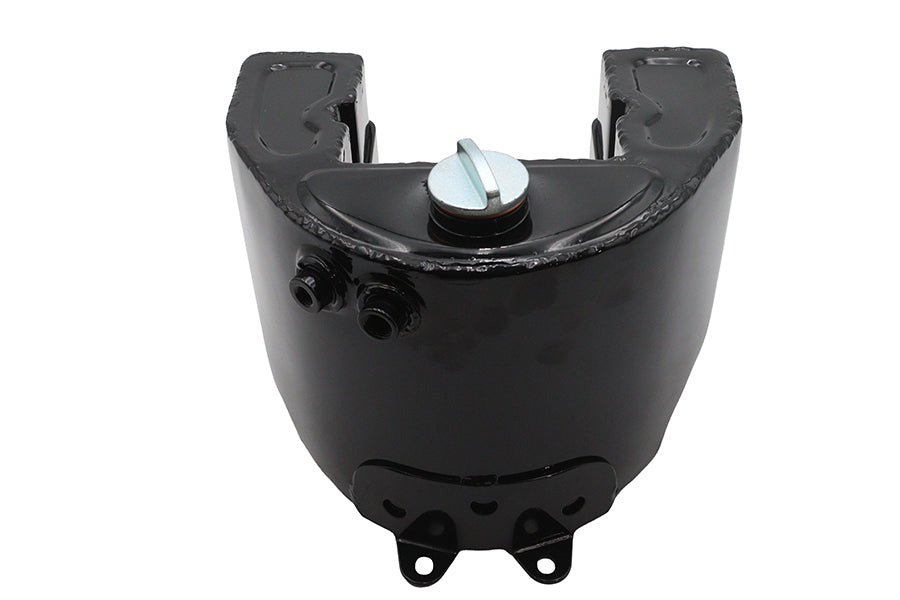

Replica Black Oil Tank

Replica 1937 oil tank includes original style and accoutrements in black finish. Tank has embossed smooth edge top welded panel. The oil cap included features a shot peen finish.

Bottom feed hole is 3/4 inch - 20 TPI and requires a fitting to resize the hole to 1/2 inch - 20 TPI for the banjo bolt. The left vent hole is 3/8 inch - 24 TPI. The right return hole is 1/2 inch - 20 TPI. We suggest to use taps to clean the threads before installing the oil lines. *NOTE: Must order oil line banjo fitting and oil feed valve separately. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall.

Product Details

• Manufacturer: Wyatt Gatling
• V-Twin Part Number: 40-0472
• Category: Oil Tank
• Product Group: Oil Tank
• Product Type: Tanks
• Country of Origin: TAIWAN

Fitment

• 1937 EL
• 1937 UL

Measurements

• Height Front: 7 inches
• Height Rear: 6-1/2 inches
• Depth: 8-1/2 inches
• Depth of Battery: 5 inches
• Width: 10 inches
• Battery Width: 4-7/8 inches

Please verify fitment before ordering.
