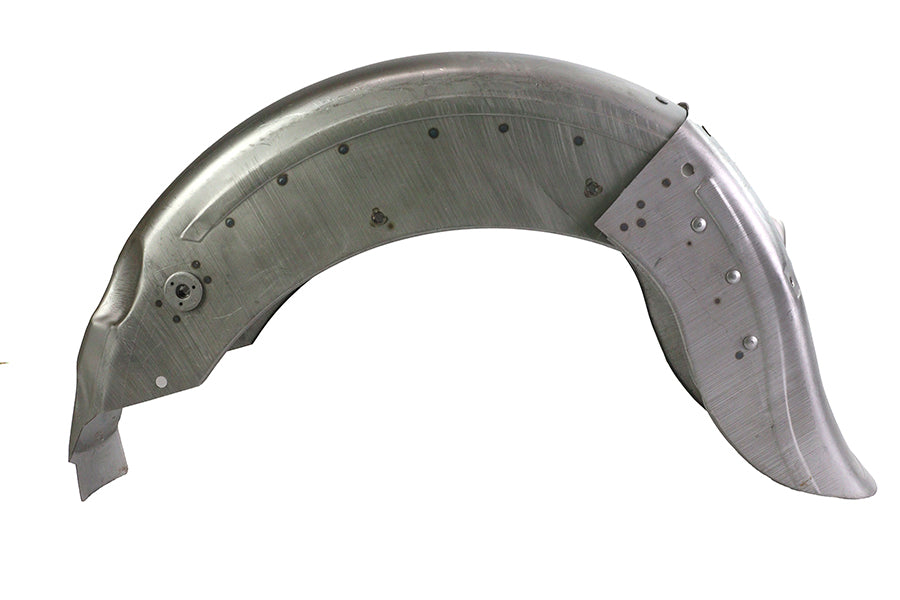

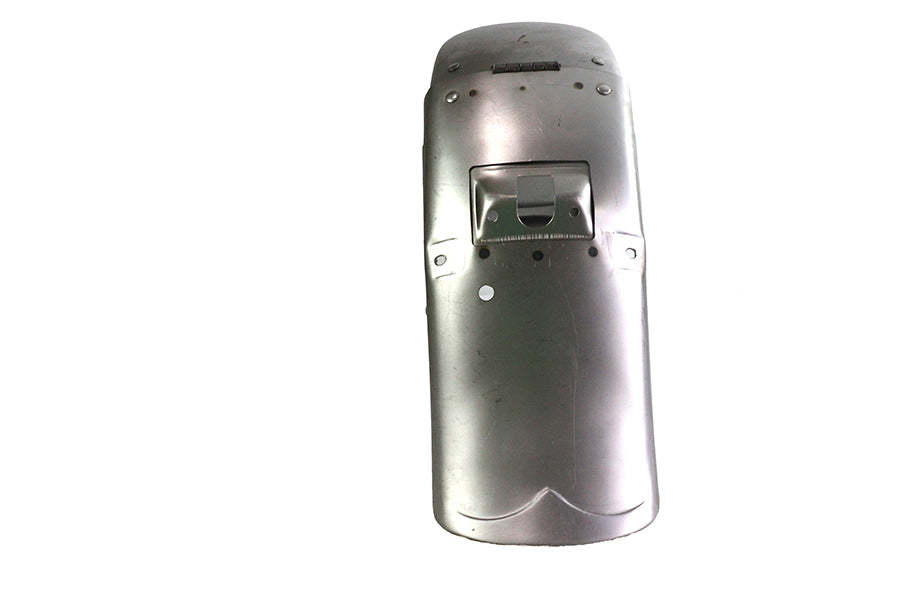

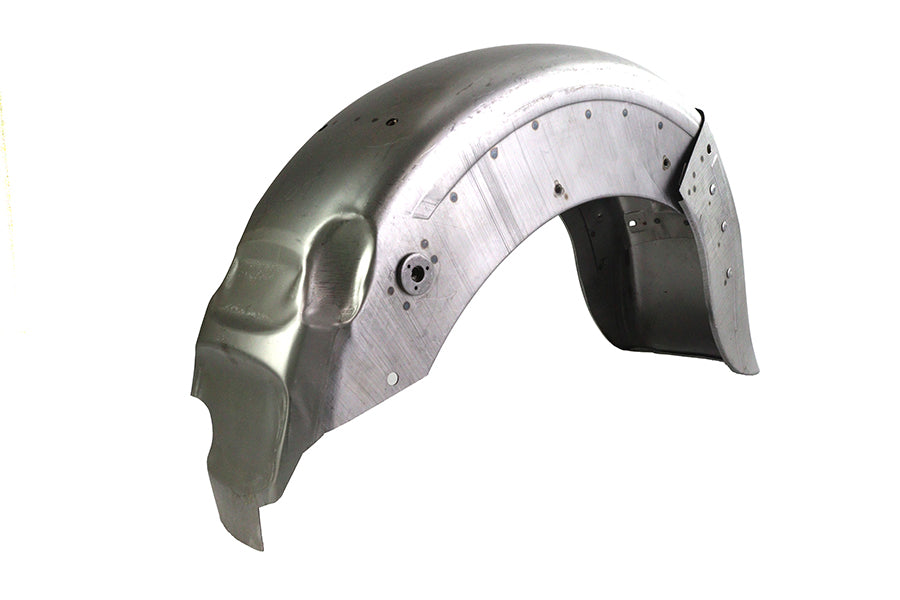

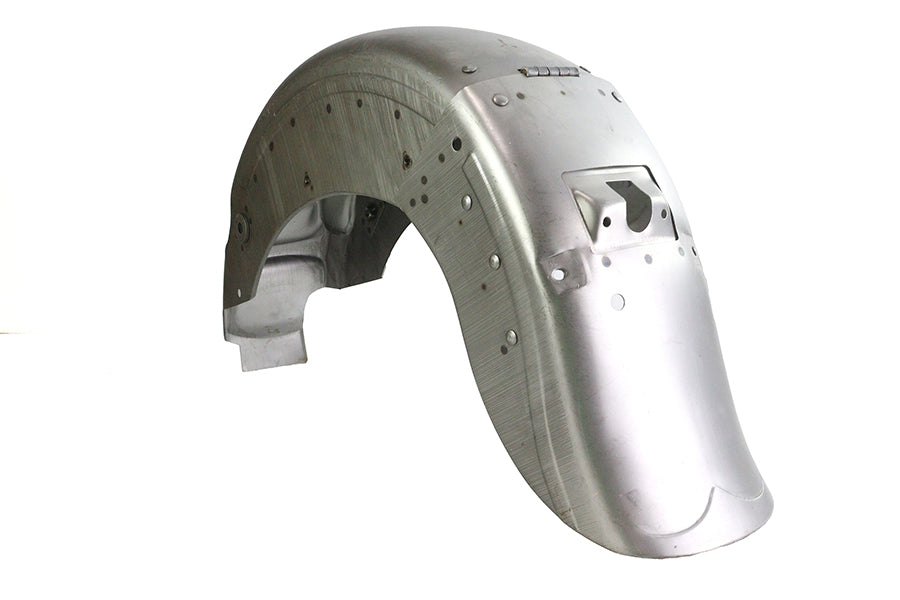

Factory Sample Replica Rear Fender with Hinged Tail

Factory Sample replica rear fender with hinged tail and tail lamp cutout. Accepts late 1973-up large style tail lamp. Fender has turn signal bar indent and holes.

Fender is for use with a 16 inch or 19 inch whee. Please mount to struts before painting or finishing. Check mount hole locations for struts. Holes may have to be enlarged for certain strut hole locations. Before priming or painting fit the fender body braces and mounting points in place. Fender rivets hinge and brackets will have to be tweaked for final fitment. Patience is required for proper installation! The tail lamp mounting holes are 2-1/2 inch apart. The holes with indents are 6 inch apart sitting 1 inch below the mounting holes and 1-3/4 inch outside of tail lamp holes. Factory sample is a brand new pre-production parts but may have imperfections on the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 50-2239
• Category: Fender
• Product Group: Rear
• Product Type: Fenders
• Country of Origin: TAIWAN

Fitment

• 1973-1984 FL

Measurements

• Width: 7-1/4 inches

Please verify fitment before ordering.
