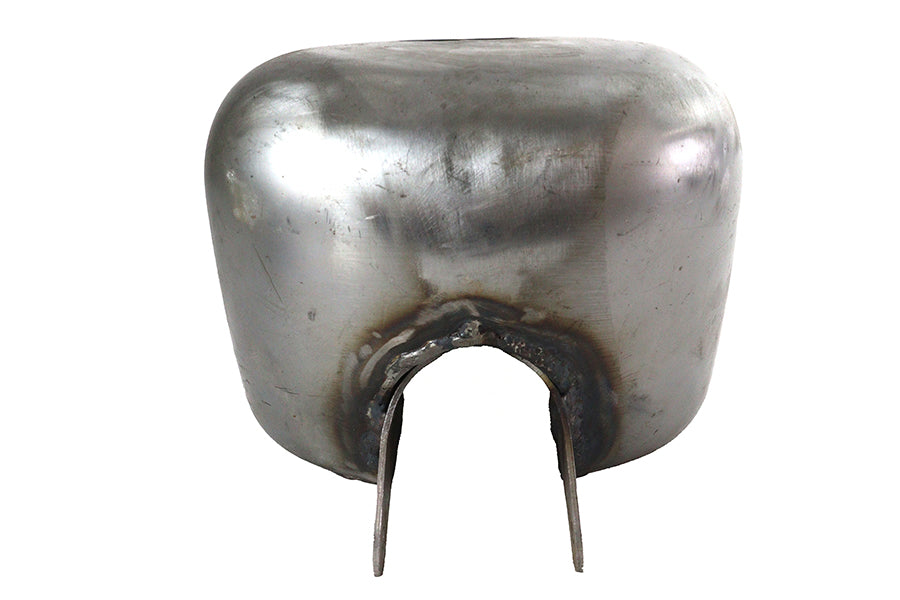

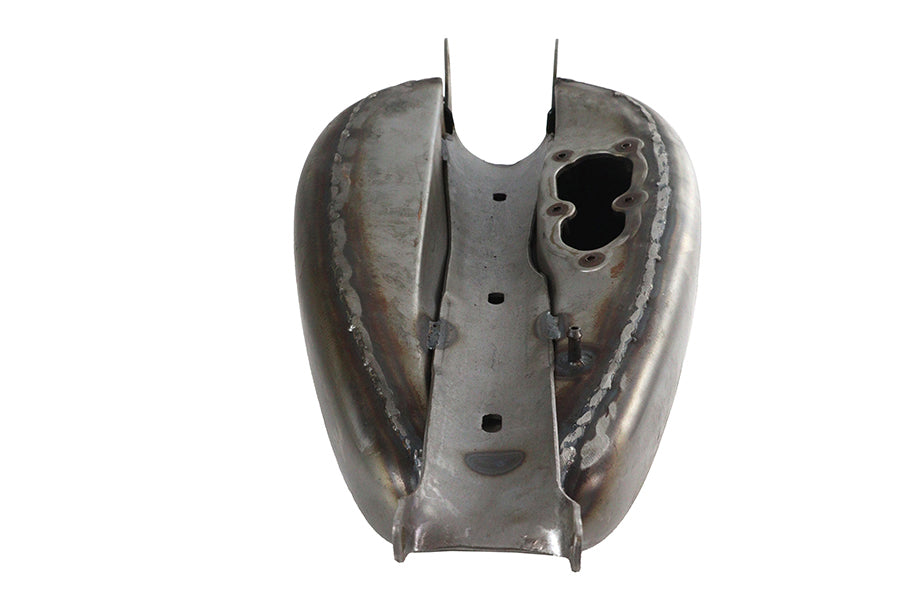

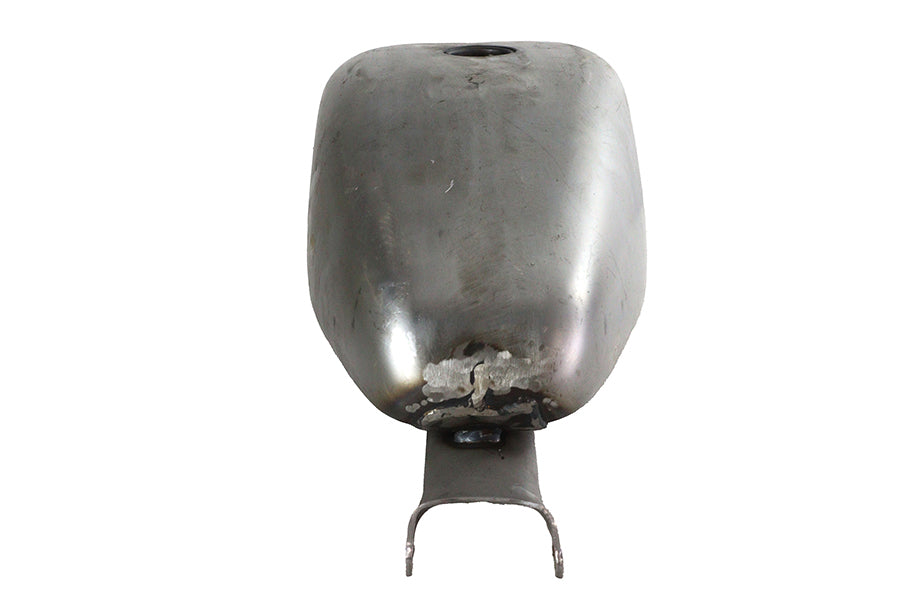

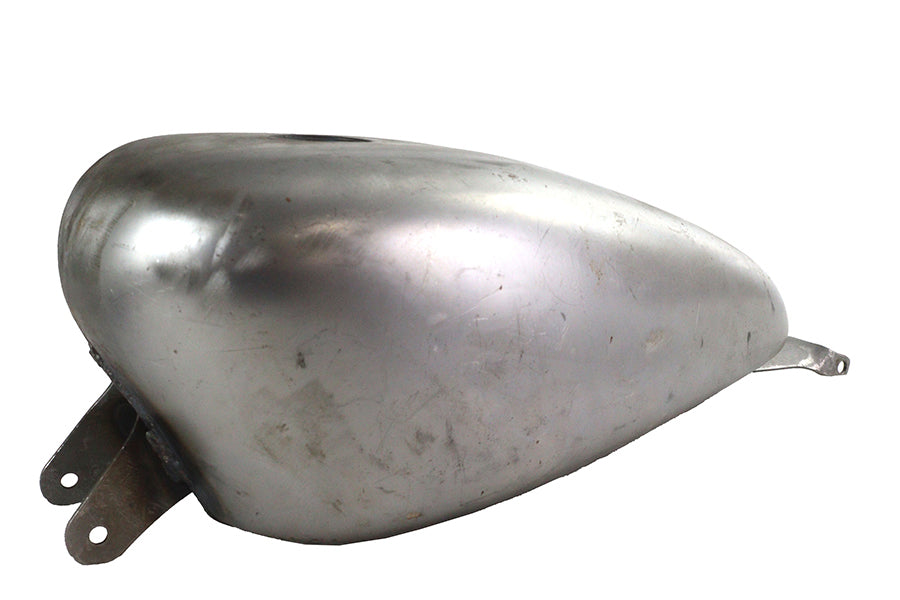

Factory Sample Raw Replica 3.2 Gallon King Gas Tank

Raw replica gas tank has a fuel capacity of 3.2 gallons.

Replica King gas tank features an updated design shape that rolls the bottom edge under to give flowing lines while still retaining the classic shape. Tank is for EFI type models. The fuel pump mount screw threads are 10-24 UNC. Order gas cap separately. *NOTE: Will require work. Check the tank for flaws and fit before painting. It requires sanding and primer before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test the tank and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Factory sample are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 38-7213
• Category: Gas Tank
• Product Group: Gas Tank
• Product Type: Stock 1 Piece Tanks
• Country of Origin: TAIWAN

Fitment

• 2007-UP XLCH - 883R, 1200N and 883N

Measurements

• Top Length: 20-1/4 inches
• Bottom Length: 17-1/4 inches
• Rear Width: 4 inches
• Front Width: 9-1/2 inches
• Rear Height: 2 inches
• Front Height: 8-1/4 inches
• Front Tunnel Height: 2-7/8 inches
• Rear Tunnel Height: 1/2 inches
• Tunnel Length: 21 inches

Please verify fitment before ordering.
