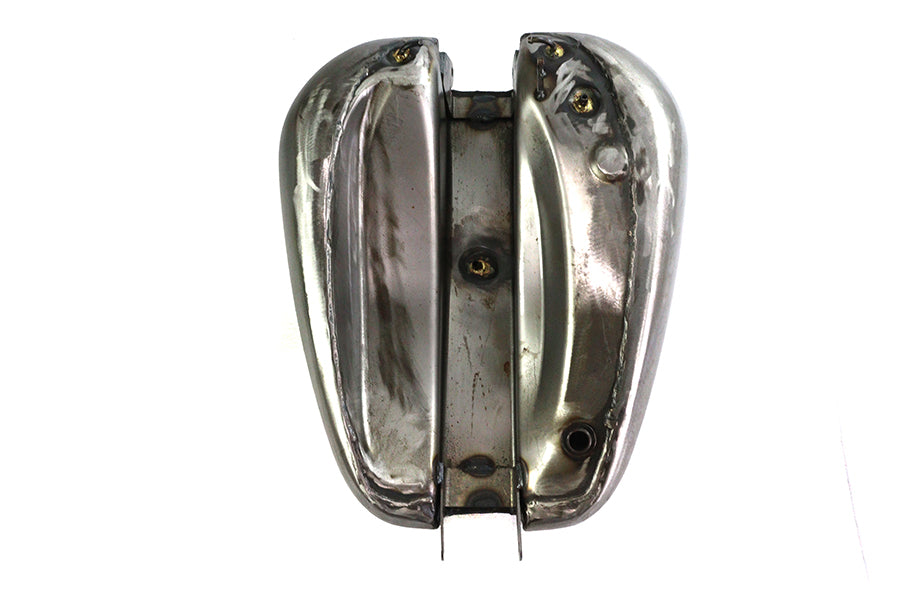

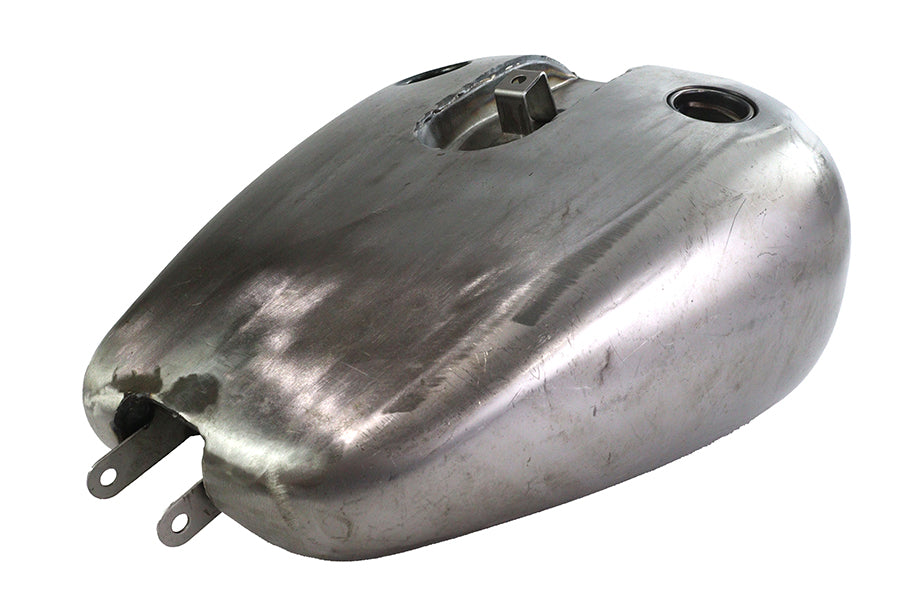

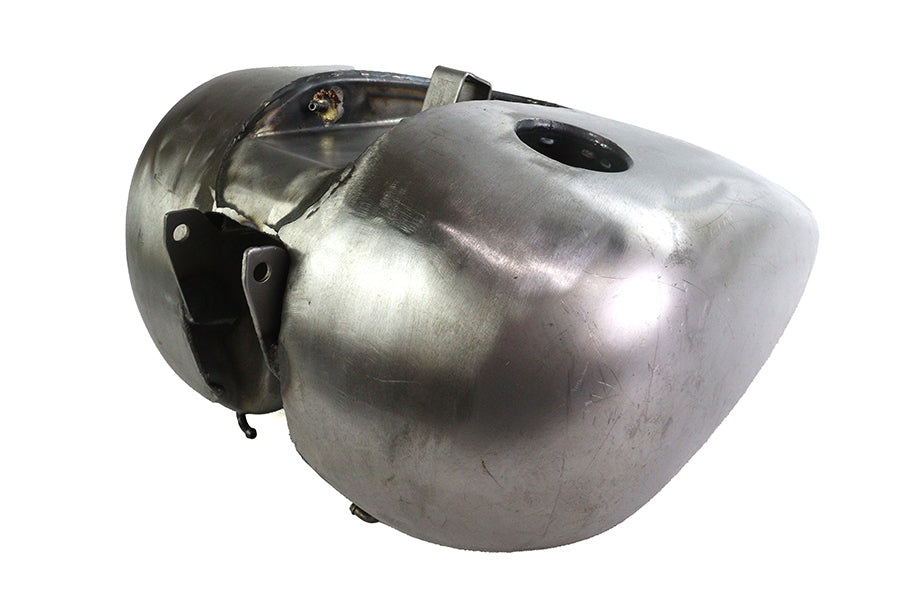

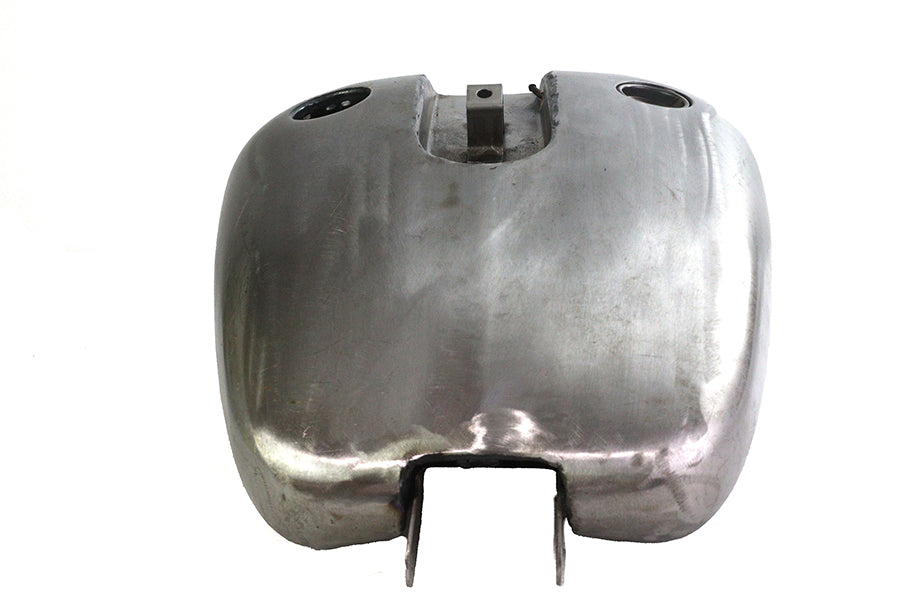

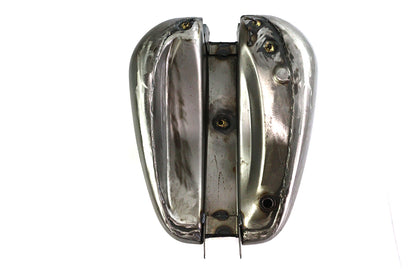

Factory Sample Bobbed 5.1 Gallon Gas Tank

Factory sample bobbed gas tank is dual cap type for carburetor models. It features a left side fuel gauge bung and a right side screw bung.

Dual cap tank for carburetor models features a left side fuel gauge bung and a right side screw bung. Order 1996-up style gas caps separately. Not for fuel injected models. Check the tank for flaws and fit before painting. Requires sanding and primer. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. *NOTE: Does not have internal wires for the gas gauge. Factory sample is a brand new production part but may have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. May show marks from installation test and fitment.

Product Details

• Manufacturer: Wyatt Gatling
• V-Twin Part Number: 38-7209
• Category: Gas Tank
• Product Group: Gas Tank
• Product Type: Stock 1 Piece Tanks
• Country of Origin: TAIWAN

Fitment

• 1996-2003 FXDWG - carburetor models

Measurements

• Top Length: 18-1/2 inches
• Bottom Length: 18-1/4 inches
• Rear Width: 9-1/2 inches
• Front Width: 15 inches
• Rear Height: 2 inches
• Front Height: 8 inches
• Front Tunnel Height: 6-1/2 inches
• Rear Tunnel Height: 1-1/2 inches
• Tunnel Length: 18-1/2 inches
• Front Bracket Width: 3 inches
• Rear Bracket Width: 1 inches
• Bracket to Bracket: 20-3/4

Please verify fitment before ordering.
