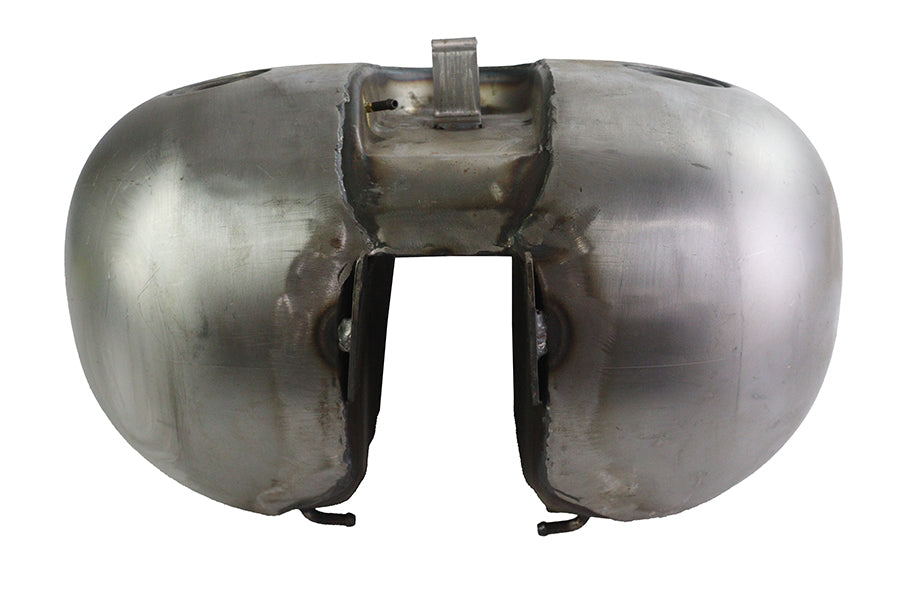

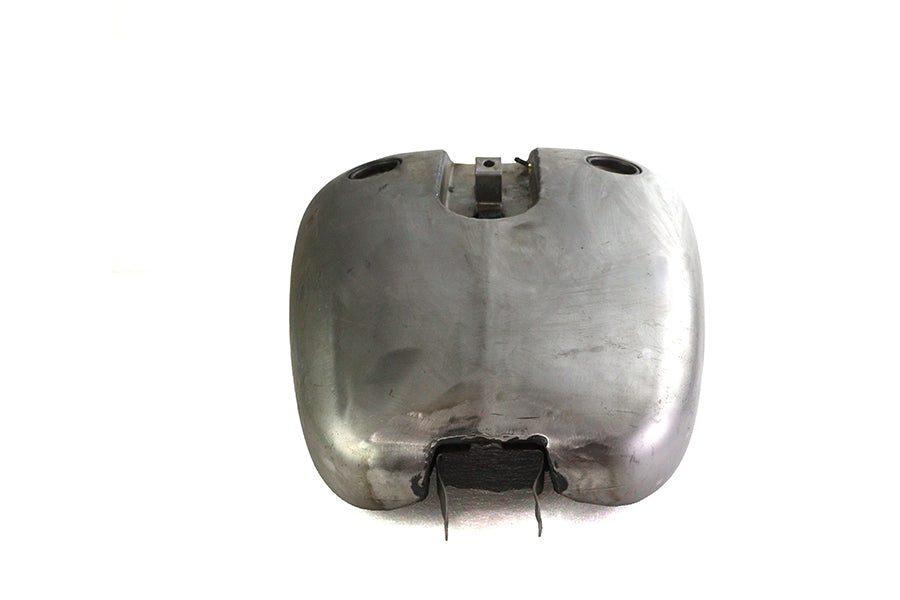

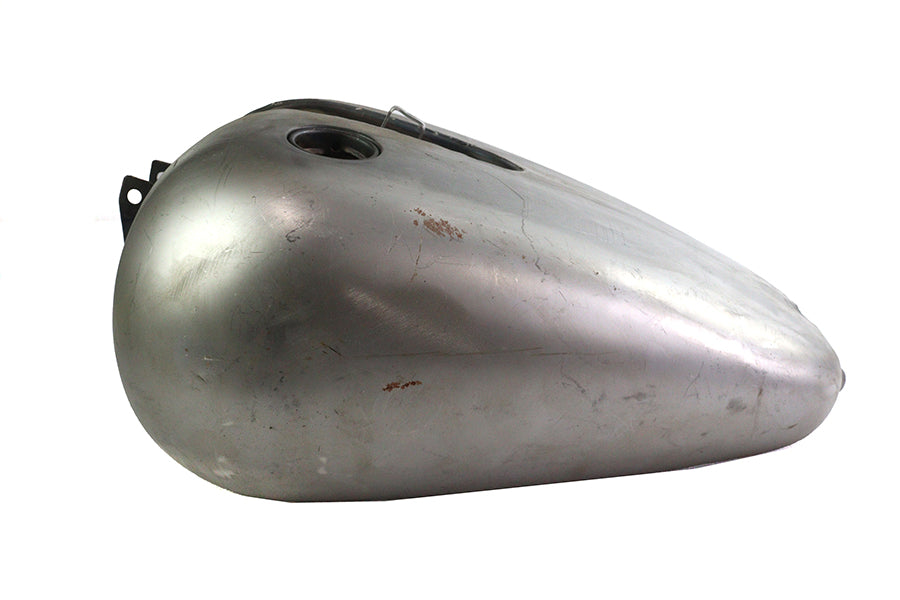

Factory Sample Bobbed 5.1 Gallon Gas Tank

Factory sample custom gas tank does away with the stock fuel gauge and utilizes two right handed screw bungs to accept late style gas caps. Fuel capacity is 5.1 gallons.

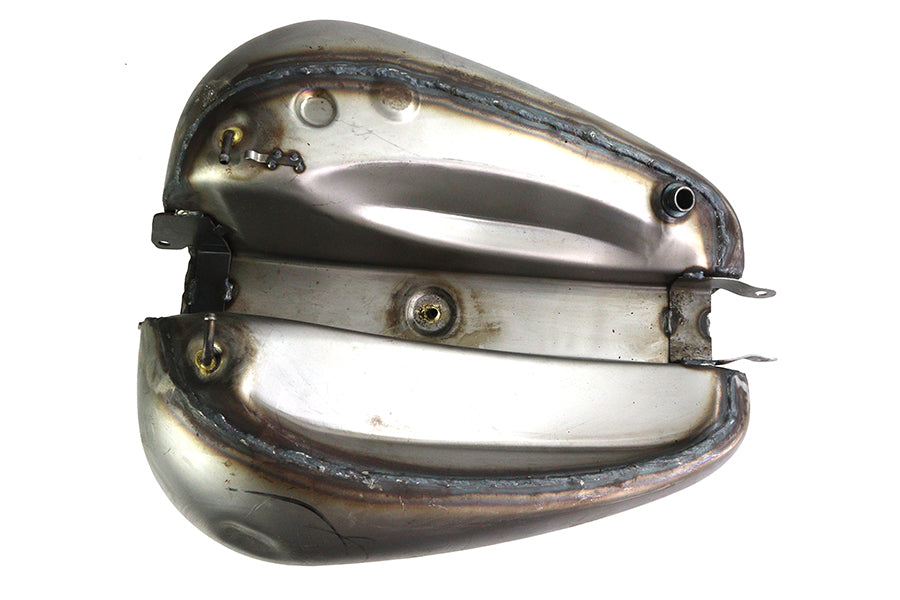

Order gas caps separately. The tank uses a stock style FXDWG dash console. Tank is not for fuel injected models. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. This will help to stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed.Petcock fitting should be masked or plugged during painting for easy installation. of petcock. The rear tunnel width is 2-3/4 inch and the front is 3 inch/ It is 20-3/4 inch from the center of the mounting holes. Factory sample is a brand new production part but may have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. May have dings dents bent tabs and/or surface rust.

Product Details

• Manufacturer: Wyatt Gatling
• V-Twin Part Number: 38-7208
• Category: Gas Tank
• Product Group: Gas Tank
• Product Type: Stock 1 Piece Tanks
• Country of Origin: TAIWAN

Fitment

• 1996-2003 FXDWG - carburetor models

Measurements

• Top Length: 18-1/2 inches
• Bottom Length: 18 inches
• Rear Width: 8 inches
• Front Width: 15 inches
• Rear Height: 2 inches
• Front Height: 8-1/2 inches
• Front Tunnel Height: 6 inches
• Rear Tunnel Height: 1-1/2 inches
• Tunnel Length: 18-3/4 inches
• Between Front Mounts: 2-3/4 inches
• Between Rear Mounts: 2-3/4 inches

Please verify fitment before ordering.
