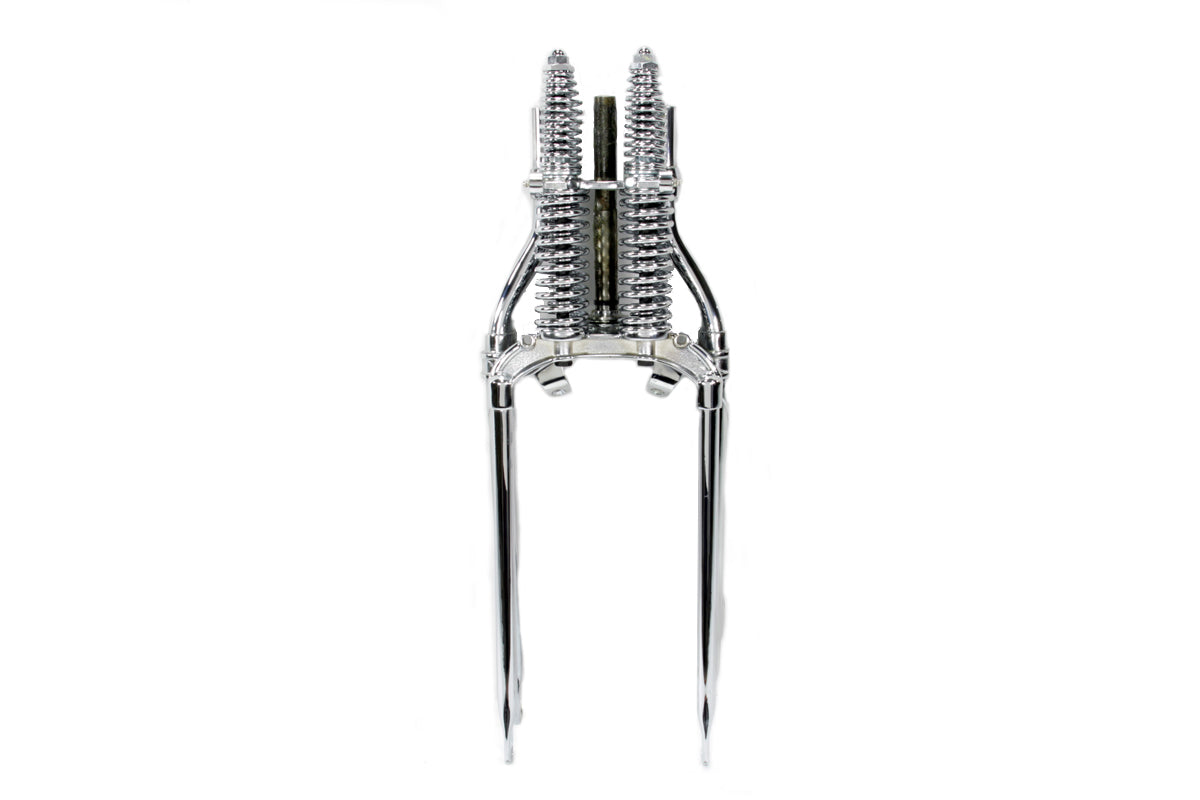

Factory Sample 18 Spring Fork Assembly Chrome

Chrome spring fork assembly is completely assembled with inner springs. Fork has a 7/8 inch non removable stem. Axle not included.

*NOTE: Rocker set not included must order separately as required. For 45 Solo applications rockers with 3/8 inch axle holes are mounted on the inside of the fork legs using 7/16 inch threaded stud. For 1941-57 Servi-Car applications offset rockers are mounted on the outside of the fork with a bolt on 5-bolt lug star hub wheel and studs that are 1/2 inch. Rocker mount holes are drilled to 7/16 inch but must be enlarged to 1/2 inch for off set rockers The distance between the rockers measures 6.5 inch This item replicates the center section of the stock bars with the upward pointing stumps. It will also fit aftermarket custom Spring Forks with an offset neckpost that was designed to use a stock type triple clamp with holes at 4-3/4 inch on center. Use these with reproduction Stellings & Hellings risers available in inline or offset configurations. *NOTE: We measure from the top of the rear leg (tube) to the front axle center line. Factory sample are brand new pre-production parts but have in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. May have some rust on welded areas. Finish may be blemished. May be chipped or scratched. Sample parts may show marks from installation test and fitment. Does not include axle available separately.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 49-2461
• Category: Side Valve
• Product Group: Front Fork
• Product Type: Assemblies
• Country of Origin: CHINA

Fitment

• 1941-1957 G
• 1936-1952 W
• 1936-1940 G - with inside rockers
• 1937-1952 Chief

Please verify fitment before ordering.
