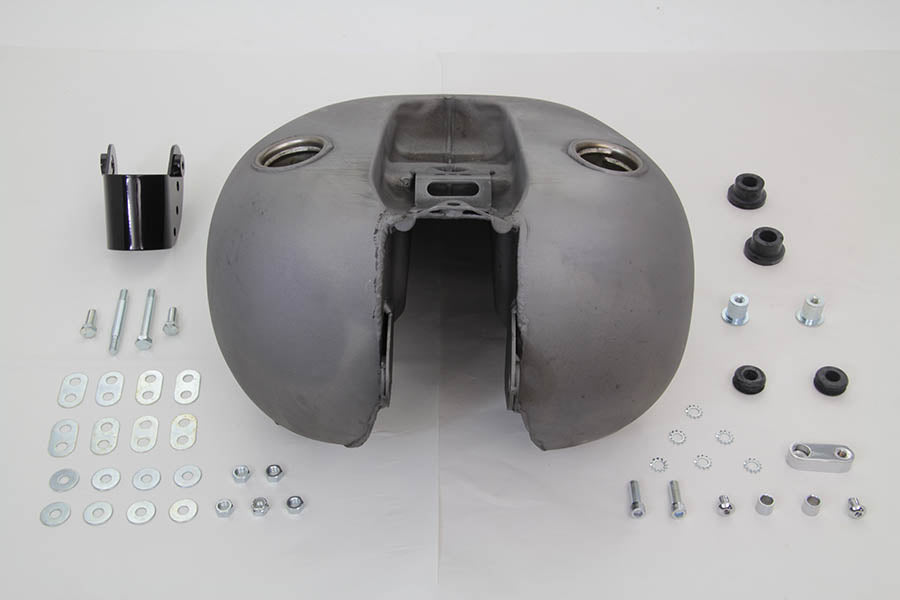

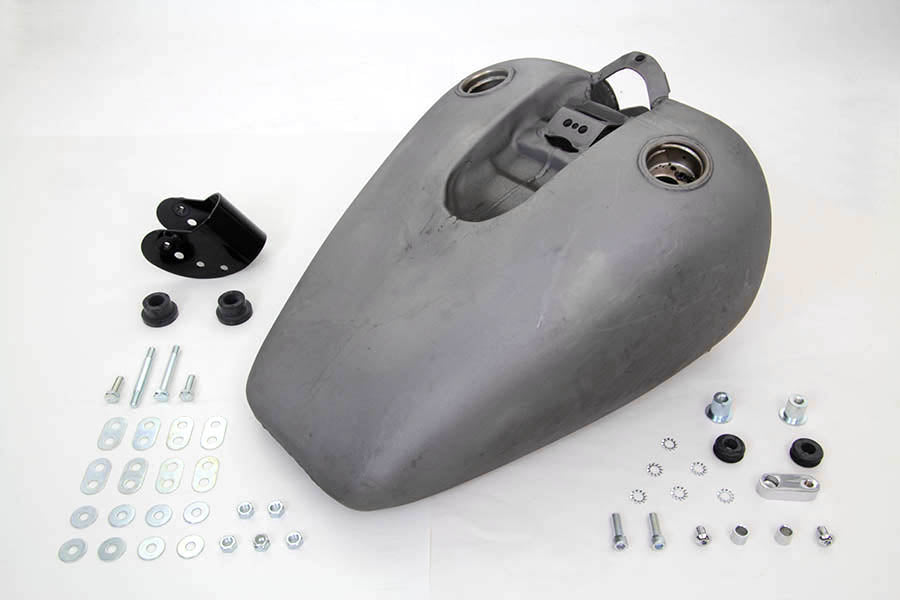

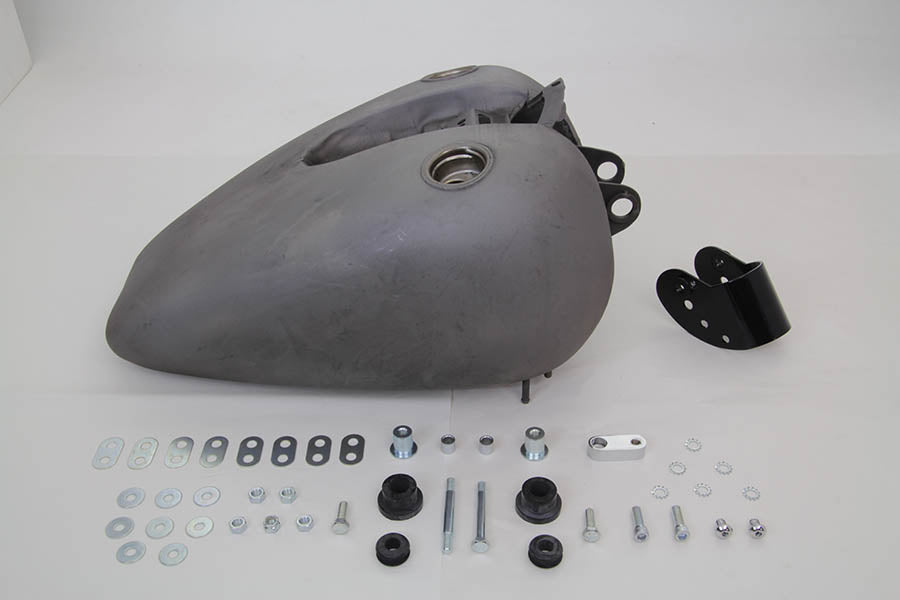

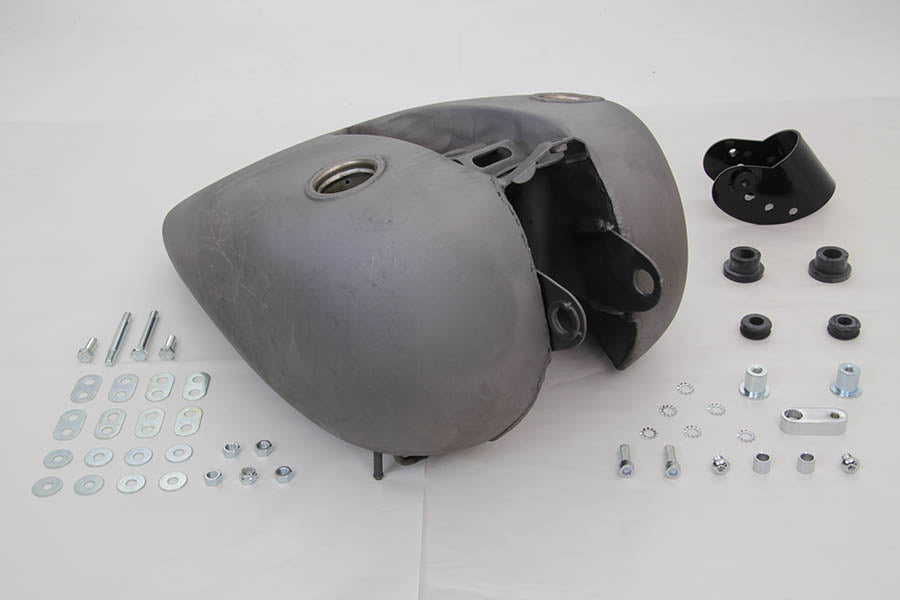

Bobbed 3.2 Gallon Gas Tank

One piece gas tank has a left side petcock location and a fuel capacity of 3.2 gallons. Gas tank bolts on existing mount points.

Tank accepts a two light three light or cast type dash kit. Tunnel at the bottom bracket measures 2-1/2 inch. At the top of the tunnel just before it widens it measures 2-3/4 inch and at the top bracket the tunnel measures 3-3/8 inch. You must use an XLS or shorter seat for 1982-up models. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. This will hlep to stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. Order FXR/FXD dash panel kit in chrome or black separately. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Product Details

• Manufacturer: Wyatt Gatling
• V-Twin Part Number: 38-0096
• Manufacturer Part Number: 74849
• Category: Gas Tank
• Product Group: Gas Tank
• Product Type: Stock 1 Piece Tanks
• Country of Origin: TAIWAN

Fitment

• 1982-1994 XL

Measurements

• Top Length: 18.5 inches
• Bottom Length: 16.5 inches
• Rear Width: 7 inches
• Front Width: 13.5 inches
• Rear Height: 2 inches
• Front Height: 8.5 inches
• Front Tunnel Height: 8 inches
• Rear Tunnel Height: 2 inches
• Tunnel Length: 17 inches

Please verify fitment before ordering.
