45 WL Frame and Fork Kit
Low stock! Only 2 left
Regular price
$3,661.85
Sale price
$3,661.85
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Question about this product?
We're happy to help.

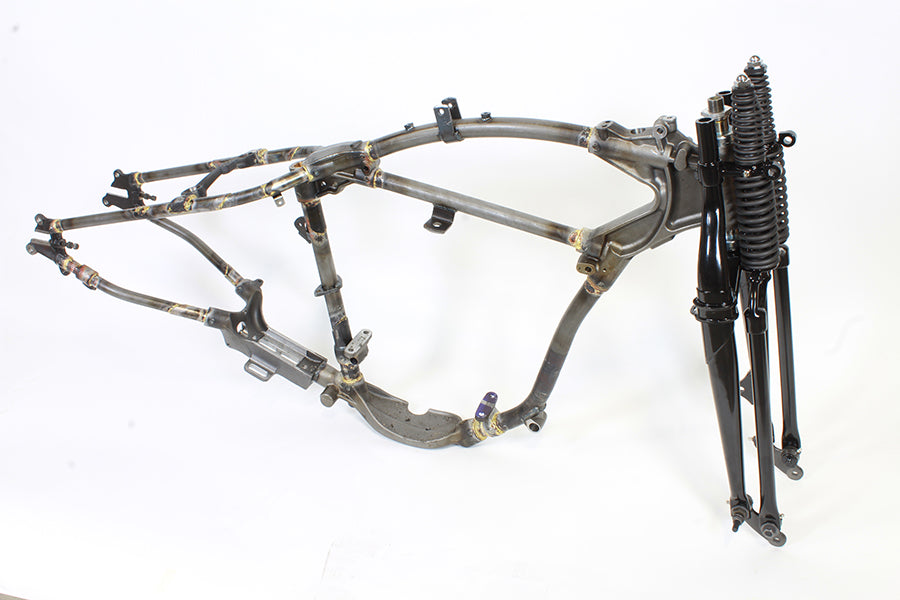

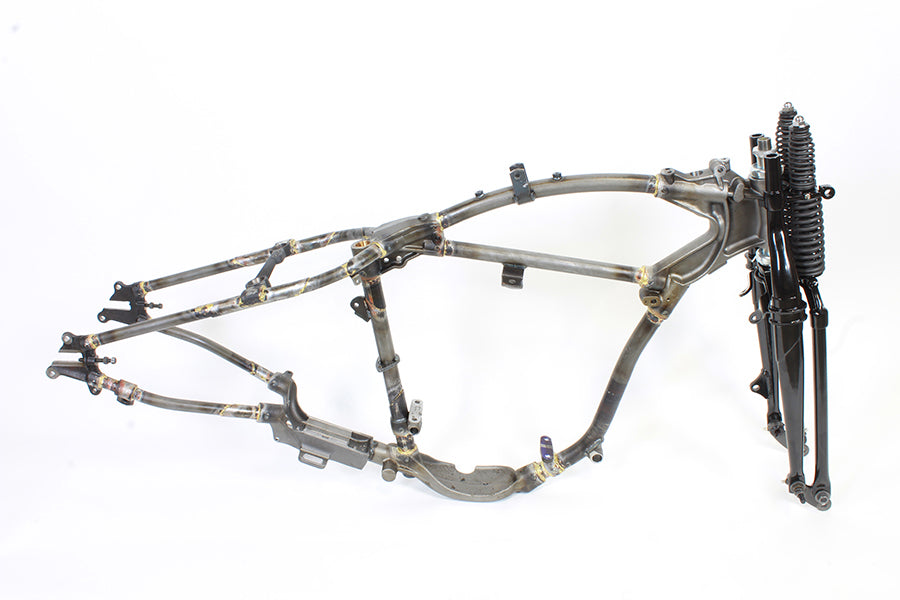

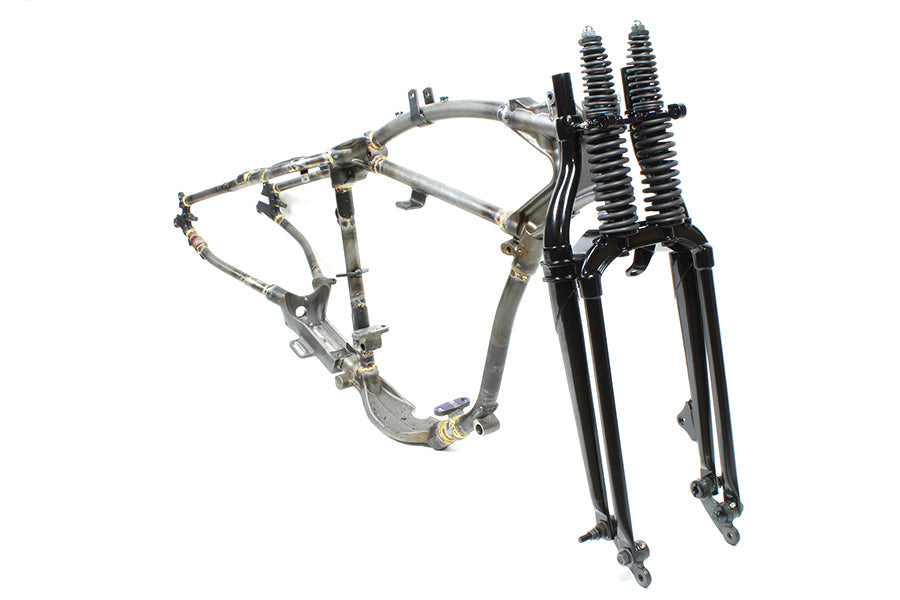

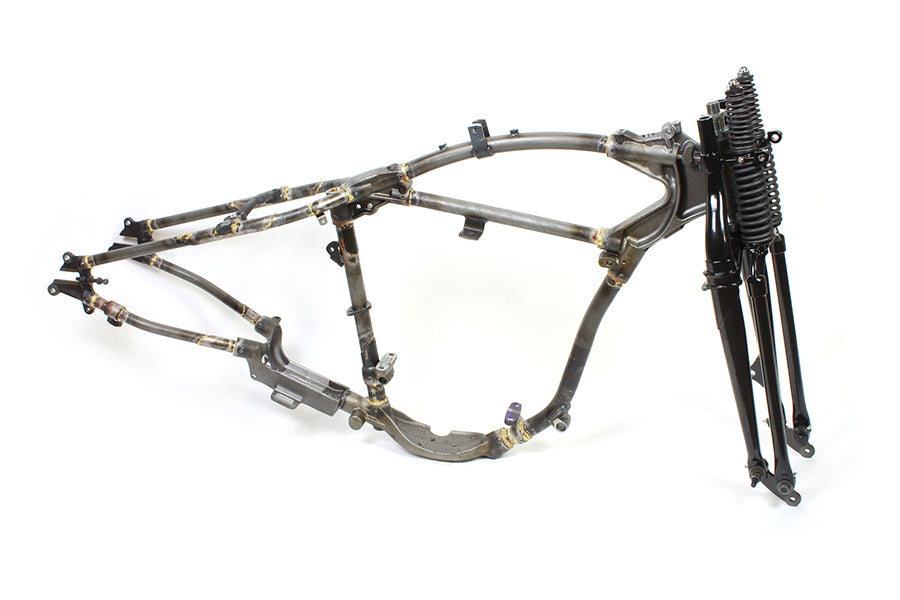

45 inch WL frame and fork kit includes a replica 45 inch W rigid frame a black 28 inch inline Spring Fork assembly and a zinc fork neck cup set.
The stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. The 45 rockers are mounted inside of the fork legs and accepts a 3/8 inch diameter axle. The replica 45 W stock style rigid frame with brazed joints features a raw finish. There's no Manufacturere's Statement of Origin only a Bill of Sale. Don't forget the pre-assembly procedure! Before primer and paint the frame will require de-greasing. Frame accepts 3 bolt transmission case. Top frame tube has threaded inserts to attach center tank panels. Threads are for #8822-18 bolt set. Fork assembly includes inner and outer springs front and rear legs and spring rod with bushings. Top clamp neck races and cone nut are not included.
Product Details
- Manufacturer: V-Twin
- V-Twin Part Number: 55-1699
- Category: Side Valve
- Product Group: Chassis
- Product Type: Frames
- Country of Origin: TAIWAN
Fitment
- 1936-1952 WL
Please verify fitment before ordering.
