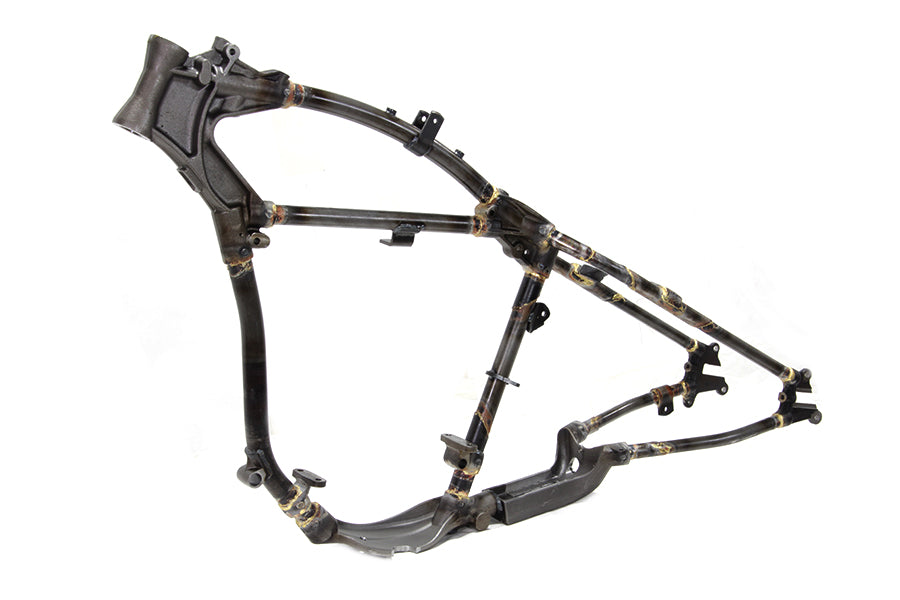

45 Rigid Frame

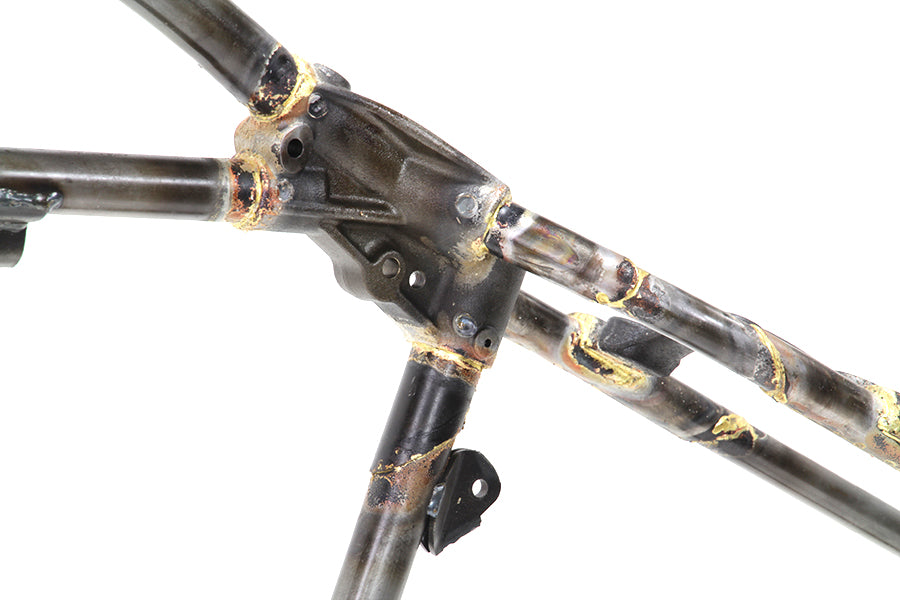

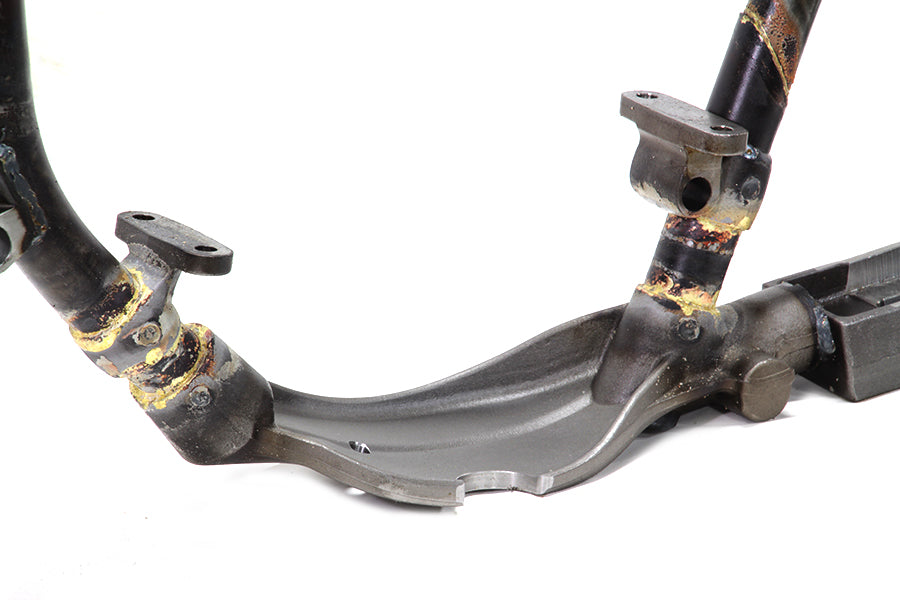

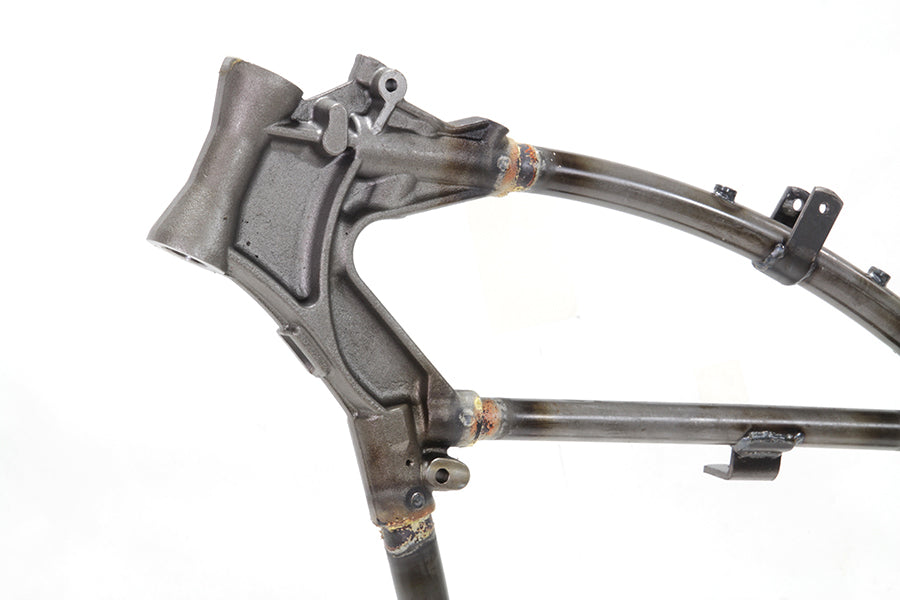

Replica 45 W stock style rigid frame with brazed joints features a raw finish. There's No Manufacturer's Statement of Origin only a Bill of Sale referencing the part number.

Don't forget the pre-assembly procedure! Before primer and paint the frame will require de-greasing. Frame accepts 3 bolt transmission case. Top frame tube has threaded inserts to attache center tank panels. Threads are for bolt set VT #8822-18 Top of Gas Tank Screw Kit Cadmium. *NOTE: There are no serial numbers stamped on the replica frame. The seat bushing is pressed into the frame. *NOTE: Battery box tab is correctly offset to the left side as original looking from rear of frame. *NOTE: Must align motor mount holes transmission case to fit adjuster screw alignment. Tool box mount tabs must be added to the right side. *NOTE: All frames are shipped to the lower 48 states by carrier truck please allow extra time for delivery. All other shipments will be made air freight collect. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 51-1017
• Manufacturer Part Number: 0280201
• Category: Side Valve
• Product Group: Chassis
• Product Type: Frames
• Country of Origin: TAIWAN

Fitment

• 1936-1952 WL

Please verify fitment before ordering.
