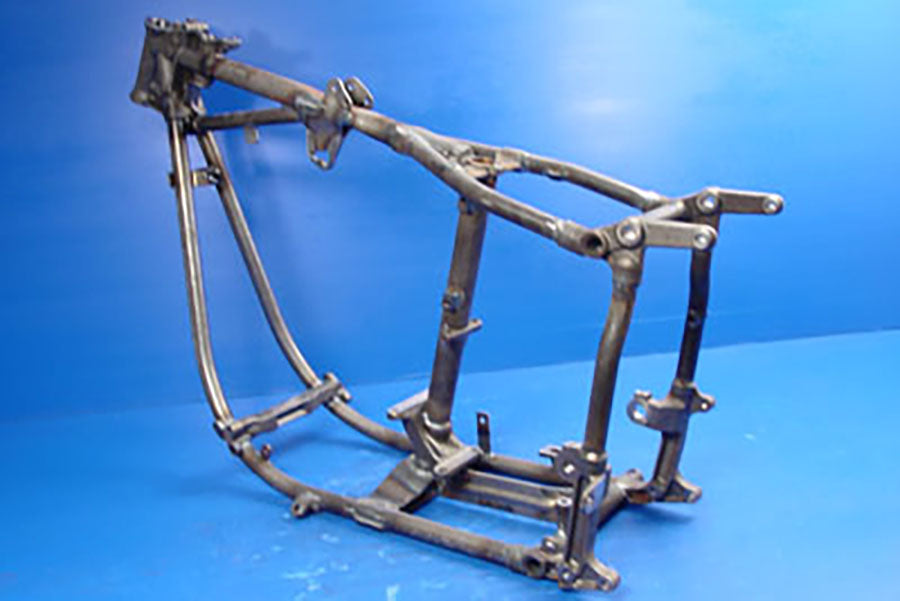

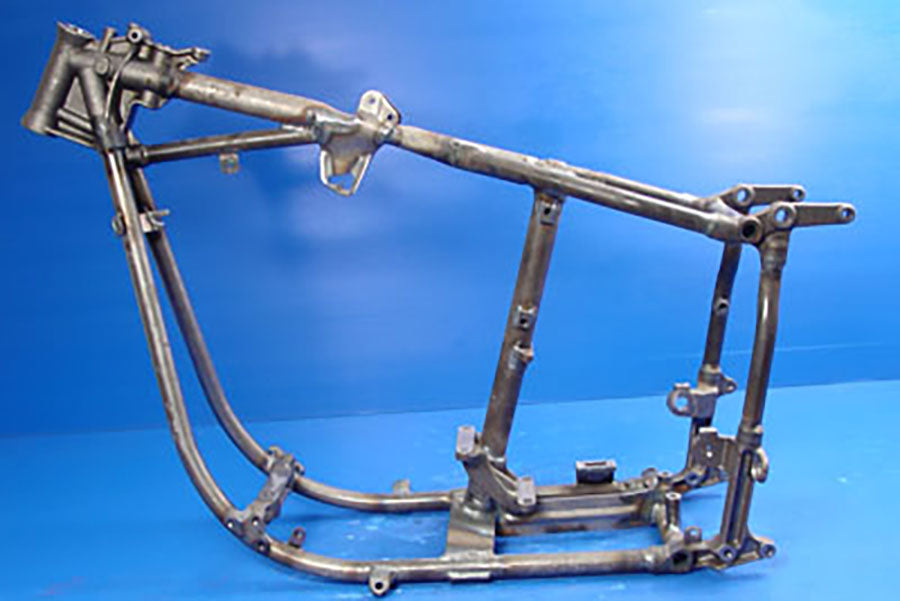

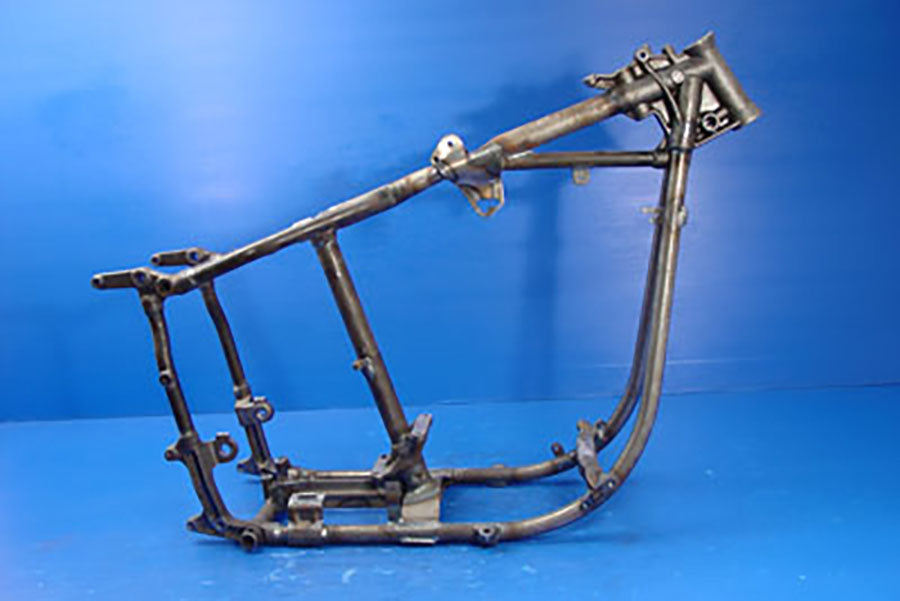

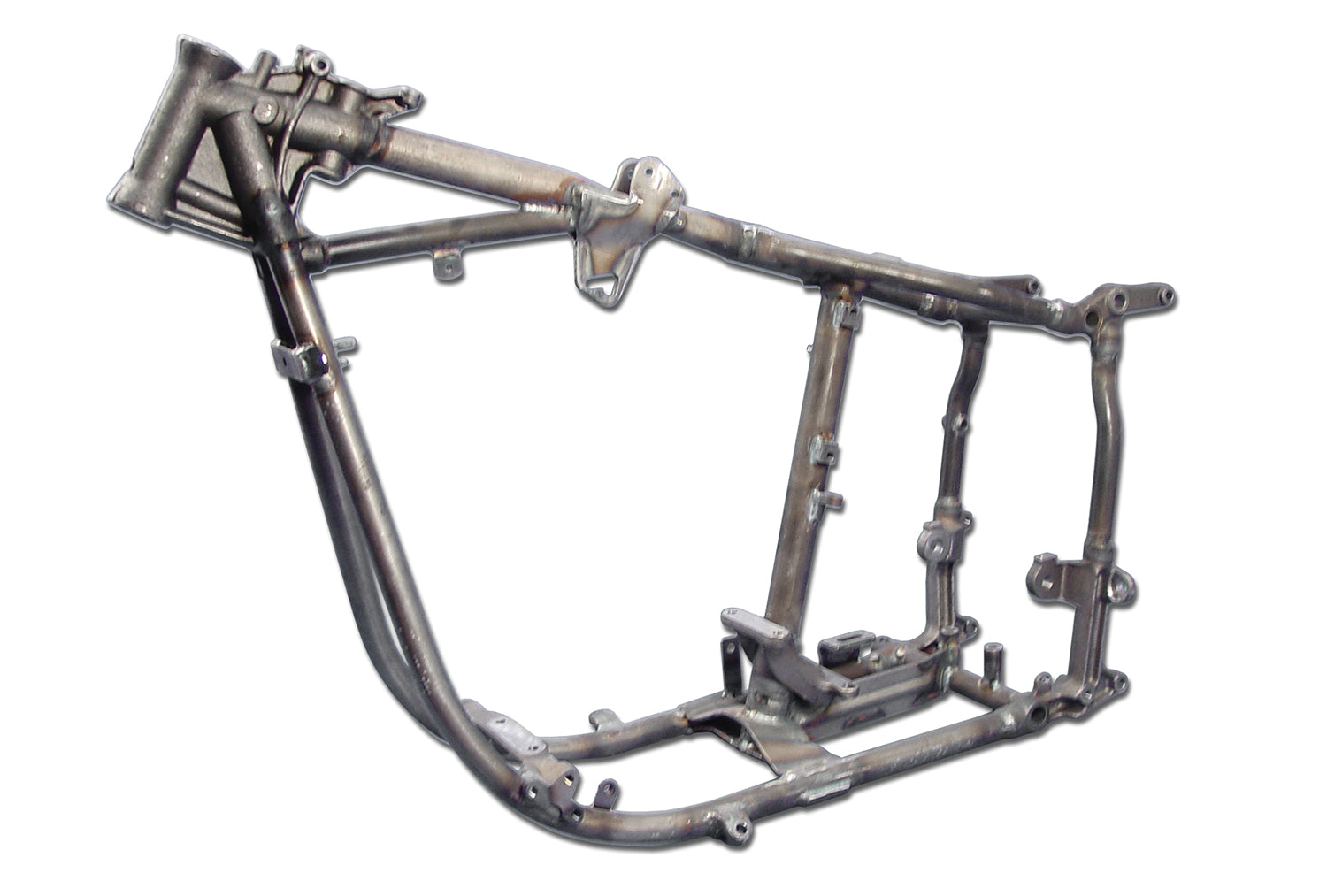

1958-1964 FL Swingarm Frame

Raw replica swingarm frame is an authentic reproduction of FLH style for 1958-1964 kick start models only. Swingarm is a non-electric start and is for use with 6 volt components. This is the lower dropped frame and accepts neck lock.

Frame accepts Panhead or Shovelhead engine 4-speed left side drive transmission seat post and round or square swingarms. Details include forged parts as original in neck motor mounts front transmission mount top seat post yoke fender strut swingarm pivot mount and footboard mount. Frame features lower drop frame and accepts a 6 volt battery and early wrap around oil tank. Neck will accept plunger type lock assembly and features provision for lock insert. Frame will accept round 1958-72 drum brake or square 1973-85 swingarm. Order neck key lock and shock studs separately recommend using 12 or 13-1/2 inch shocks. Rear drum brake models use 13-1/2 inch shocks and rear disc brake models use 12 inch shocks. Seat post bushing may require further reaming for proper fit. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: There are no serial numbers stamped on the replica frame. V-TWin MFG. supplys a Bill of Sale.

Product Details

• Manufacturer: V-Twin
• V-Twin Part Number: 51-1003
• Category: Chassis
• Product Group: Frame
• Product Type: Swingarm
• Country of Origin: TAIWAN

Fitment

• 1958-1964 FL

Please verify fitment before ordering.
