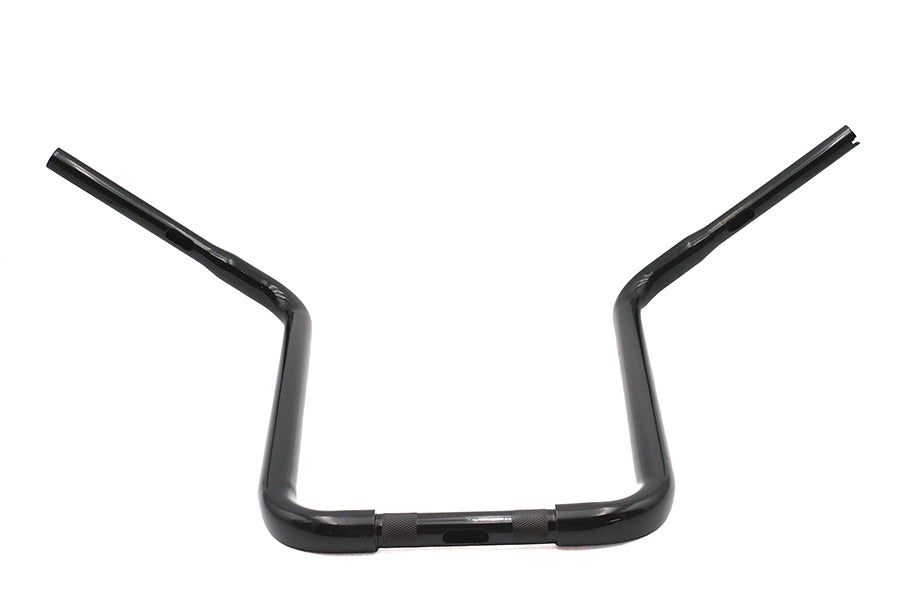

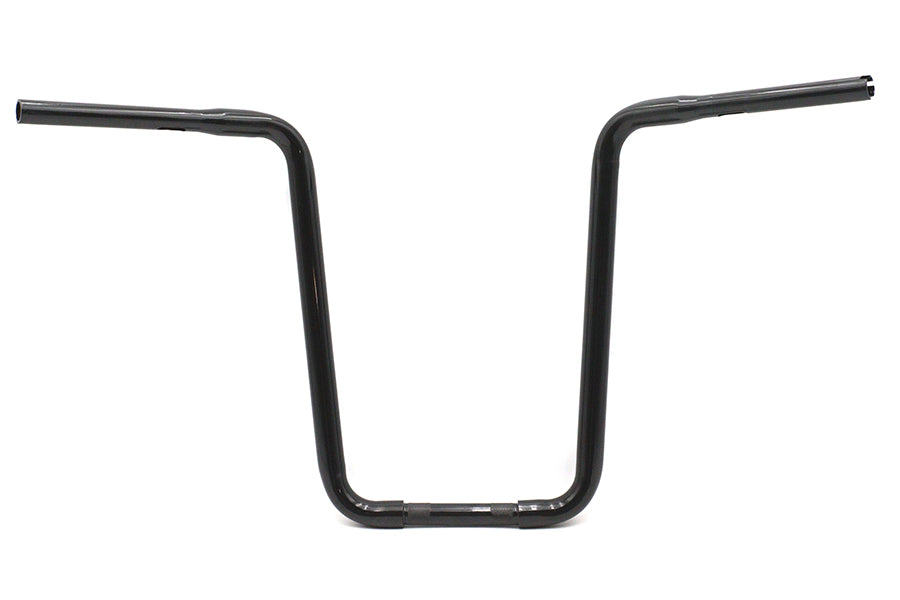

19 Narrow Body Ape Hanger Handlebar Black

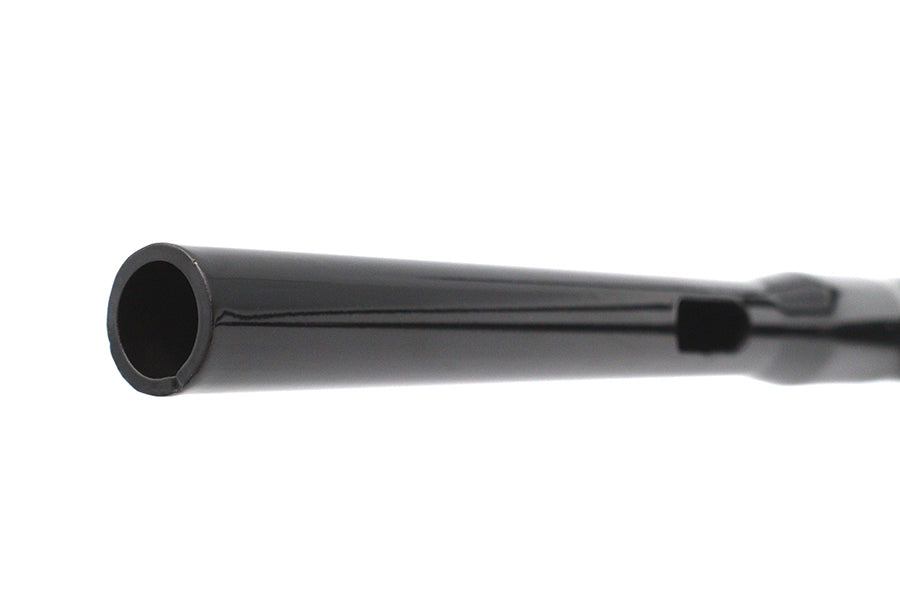

Black 1-1/4 inch handlebar with 19 inch rise has indents for external wiring and holes for internal wiring. Handlebars are 1 inch diameter at grip and riser areas.

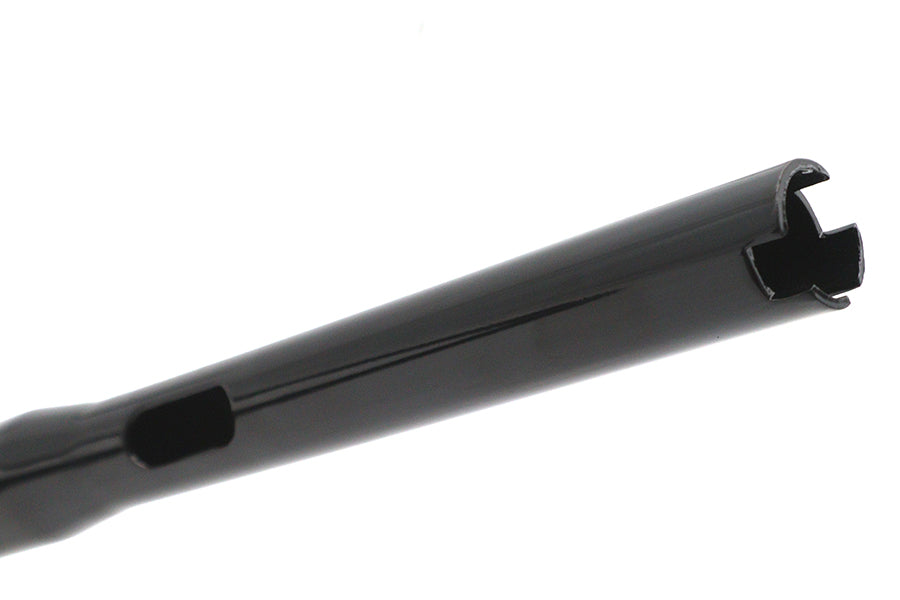

These swedged handlebars have a unique taper transition from the 1-1/4 inch diameter to the 1 inch area for mounting the stock OEM style 1 inch handlebar controls or any 1 inch custom style controls. This taper also allows you to rotate the master cylinder to any position to clear the bars with any brake line. Bars are made with CNC bender for a smooth radius at each bend. Equipped with a fishing wire already installed for easy access for pulling your wire harness through the bars. Notched bar end for TBW and can be used with standard throttle cable applications. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

Product Details

• Manufacturer: Ultima
• V-Twin Part Number: 25-2009
• Manufacturer Part Number: 50-326
• Category: Handlebar Control
• Product Group: Handlebar
• Product Type: 1982-Up 1-1/4 inch
• Country of Origin: TAIWAN

Fitment

• 0 Custom - Application

Measurements

• Rise To Grip Tip: 19 inches
• Rise To Center:
• Pull Back: 10.70 inches
• Width Tip To Tip: 33-3/4 inches
• Knurl:
• Bar Diameter: 1-1/4 inches
• Center Width: 10 inches

Please verify fitment before ordering.
