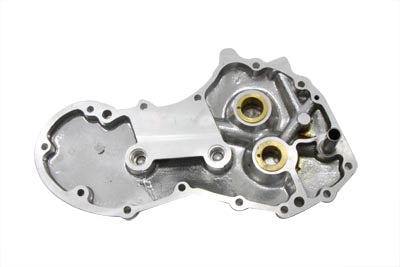

8-Finned Panhead Cam Cover Natural
Low stock! Only 10 left
Regular price
$223.85
Sale price
$223.85
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Question about this product?
We're happy to help.
Cam cover includes bushings and breather pipe. 8-finned cover has a natural finish. The bushings are for the early pinion shaft.
Cam cover accepts 1/4 inch-24 generator screws. Cam cover bushings must be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink check with screw head before installation. For final fit the cover must be reamed to make the bushing inner diameter in line with bearing in the right hand case. *NOTE: Check oil passage (drilled hole) into bronze bushings either on existing bushings or when replacing bushings. Generator holes for 32E 6 volt 2 brush generators are 1/4 inch on Pre-1957 models and 5/16 inch on 1958-1969 models.
Fitment
- 1948-1953 FL
- 1948-1953 EL
Technical Notes
- *NOTE: Final reaming for fit should be completed with cover on the right side case reamed from the left side.
OEM references: 25216-48, 584-48
