8-Finned Knucklehead Cam Cover Die Cast
Low stock! Only 10 left
Regular price
$266.69
Sale price
$266.69
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Question about this product?
We're happy to help.

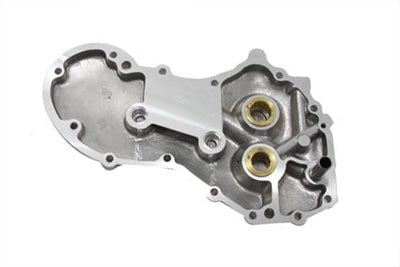

8-finned cam cover includes bushings and breather pipe with a stock die cast finish.
Cam cover bushings must be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink check with screw head before installation. *NOTE: Check oil passage (drilled hole) into bronze bushings either on existing bushings or when replacing bushings. Generator holes for 32E 6 volt 2 brush generators are 1/4 inch on Pre-1957 models and 5/16 inch on 1958-1969 models.
Fitment
- 1941-1947 FL
- 1936-1947 EL
Technical Notes
- *NOTE: Final reaming for fit should be completed with cover on the right side case reamed from the left side.
OEM references: 25216-36, 584-36
